Connections
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
146
of 218
7.14
NOTE!
According to DIN EN 61800-5-1, the following PE connection is required:

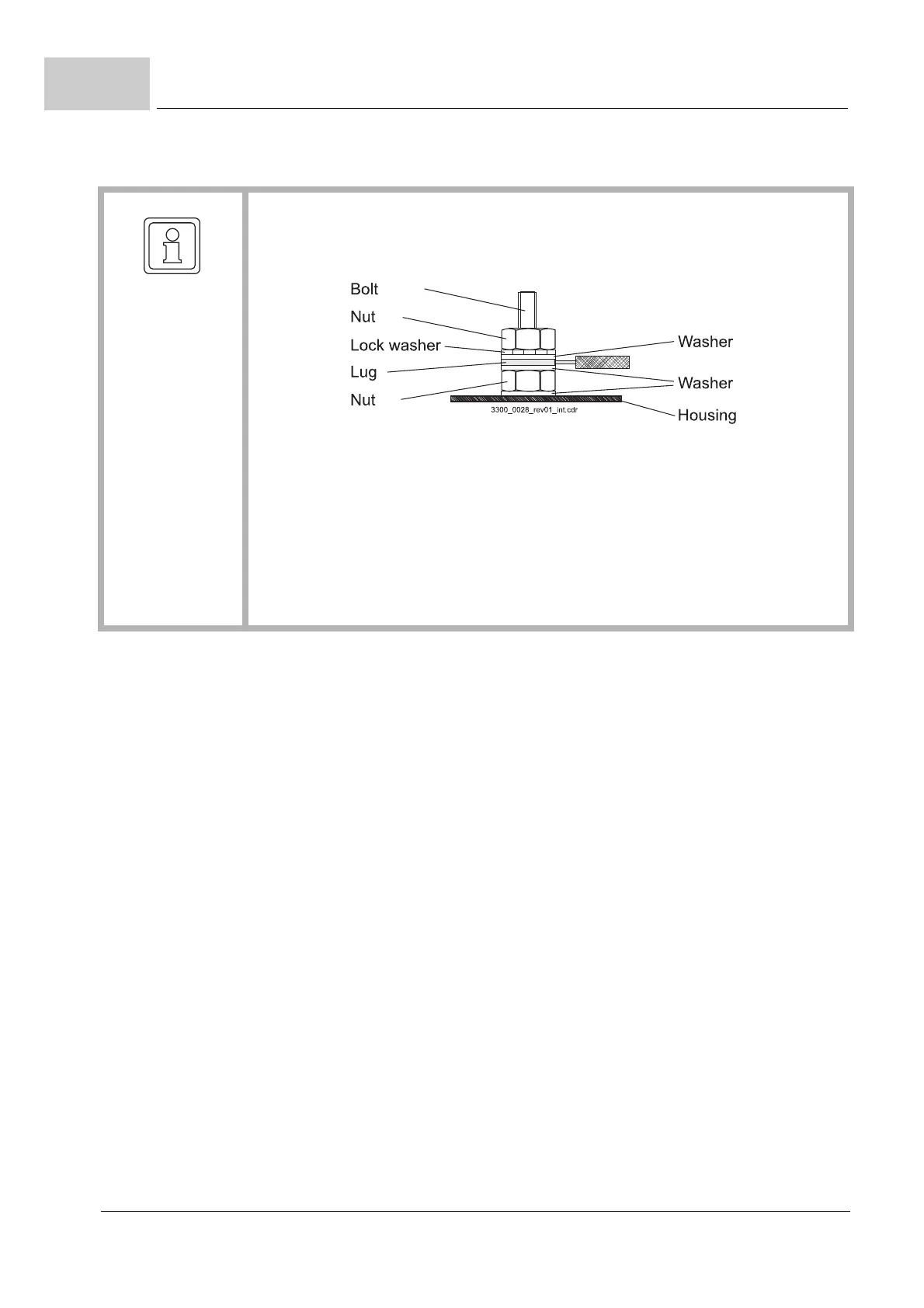

Figure 60: Structure of PE-connection
m Also, without the cable, the screw must be firmly tightened and must have a cor-
rect, electrical contact to the cabinet.
m There is one line lug between two washers and the pressing nut is protected
against loosening by one spring washer.
m The lug must have a large-surfaced contact, which means, that it should be close
to the screw.
m The structure must ensure a permanent safe contact.
