Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
141
of 218
7
Signal bus
X300
Notes for the installation of signal bus cables:

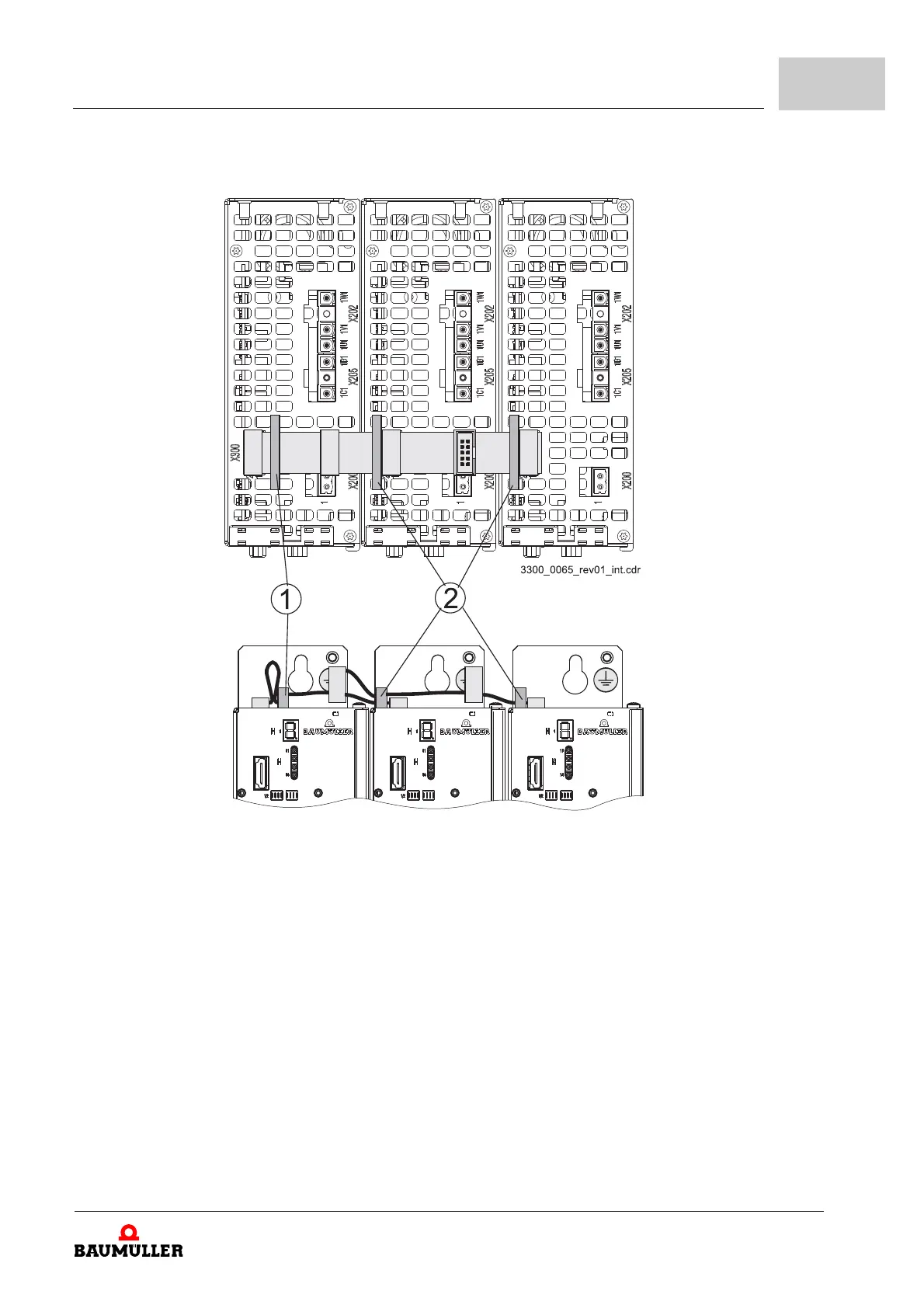

Figure 57: Installation of signal bus cable
1 Always, attach the flat cable holder from the left to the first device and at the same
position. Put the leftovers of the flat cable holder as a loop between the flat cable hold-
er and the connector.
2 F
rom the second device onwards, always attach the flat cable holder from the left and
always at the same position.
The signal bus cables are not included in the
delivery scope and must be ordered sepa-
rately. Available cables and flat cable holders see ZCable signal bus– on page 181.
