Accessories and Spare Parts
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
179
of 218
11
m Motor cable with DSL Hiperface
®
15 A
Connect cable shield with the
housing of the connector.
Cable length
(according order)
Heat shrink tubing
400 mm
Data cable shielded
Connect the cable shielding
via the strain relief clamp
of the connector housing.
Pin 1
1
3
A
D
4
DSL- blue
DSL+ white
Pin 19 DSL-
Pin 20 DSL+
B+
B-
V
W
GN/GE
U

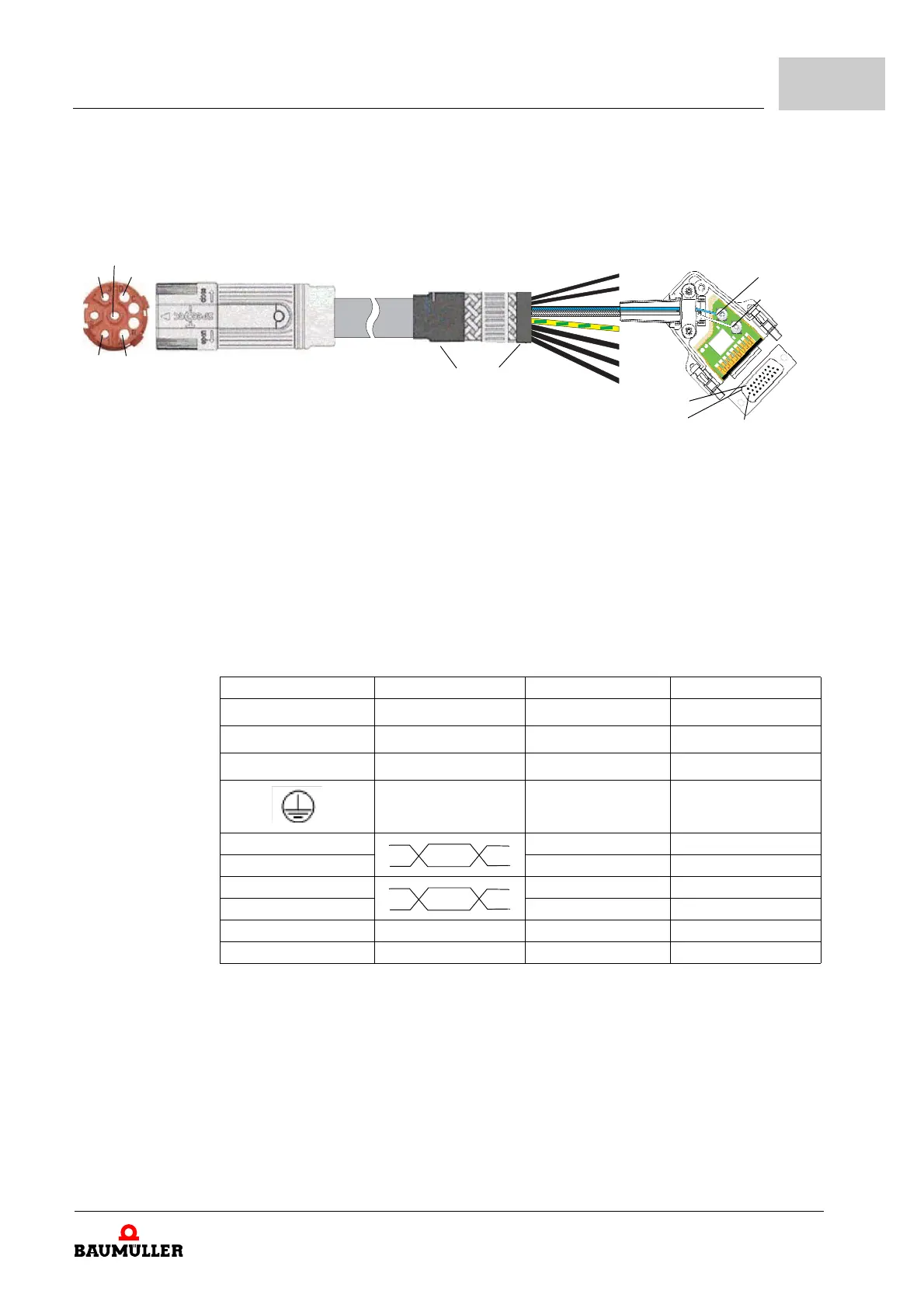

Figure 69: Motor cable with DSL Hiperface
®
15 A
Cable: 4G1.5+(2x0,75)+(2x22AWG)
Shielding: copper wires, tinned
Motor side: 
Circular metal connector speedtec
®
M23 8-pin
Connect outside shielding and inside shielding with the connector housing.
Device side: 
Metal D-sub connector 45°, 26-pin with electronics
Connect inside shielding with the connector housing.
Circular connector Type of stranding Unconnected wires Cross section of wire
1

U 1,5 mm² / black / U
3

V 1,5 mm² / black / V
4

W 1,5 mm² / black / W

GN/GE 1,5 mm² / green-yellow
A B+ 0,75 mm² / black
B B- 0,75 mm² / black
C DSL+ 22 AWG / white
D DSL- 22 AWG / blue
Housing - Outside shielding
Housing - Inside shielding
