Accessories and Spare Parts
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
189
of 218
11
speedtec
®
M23 Follow the instructions below if a self-made cable with speedtec
®
M23 is to be used:
1 Utilize the following materials:
m Cable: 4 x 0,38 + 1 x (4 x 0,14)
m High-density D-sub connector: 26-pin, male
m Round connector: 9-pin speedtec
®
M23, female (Intercontec)
2 Fully adjoin the cable shield with the housing of the round connector and with the
shielding of the D-sub connector.

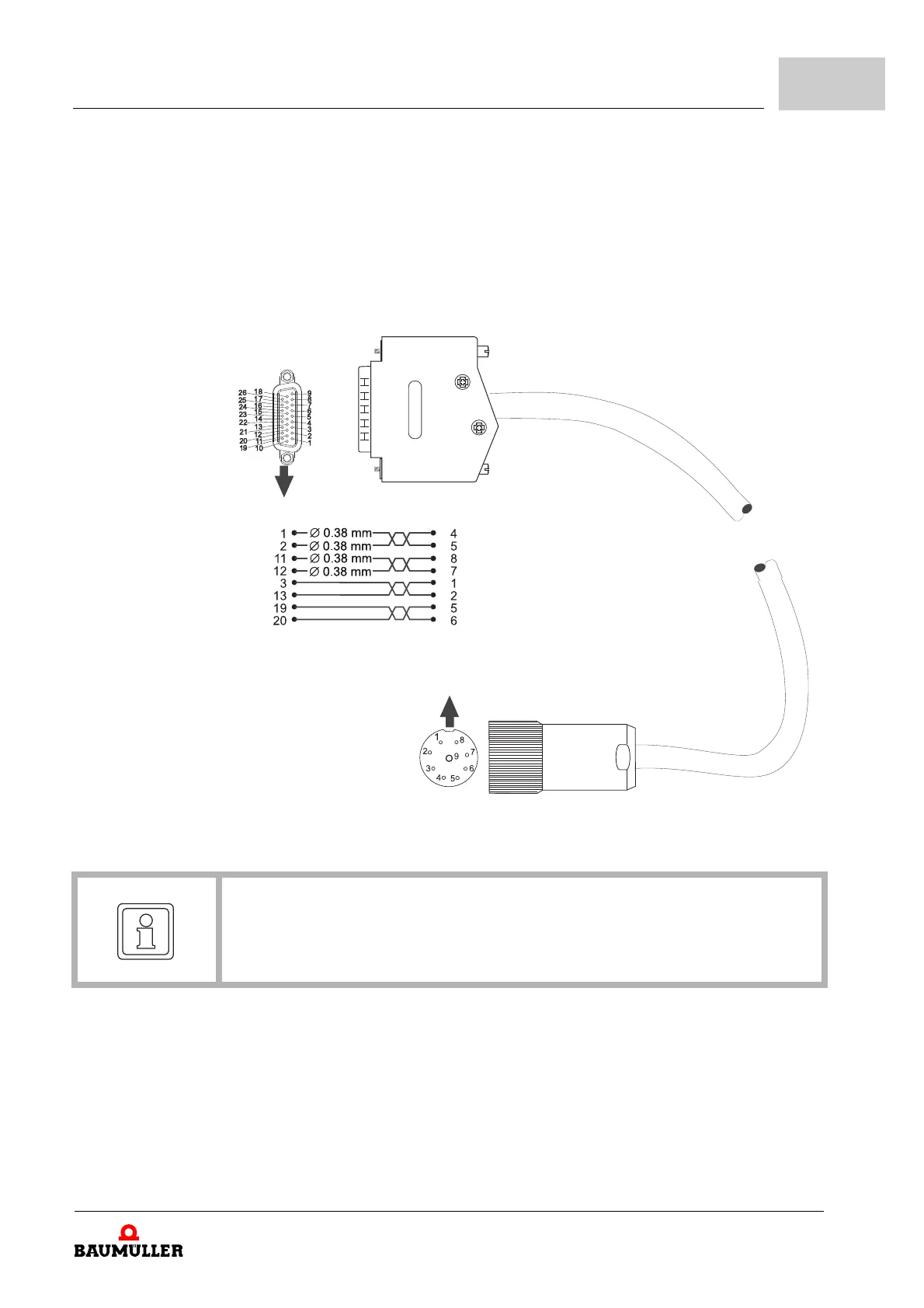

Figure 74: Connecting cable for encoder with EnDat
®
2.2 speedtec
®
M23
NOTE
The connecting cable must be made according to the figure shown above!
If there is a different pin assignment, the cable is not functionally operable and could
lead to defects, both in the encoder module and the encoder!
