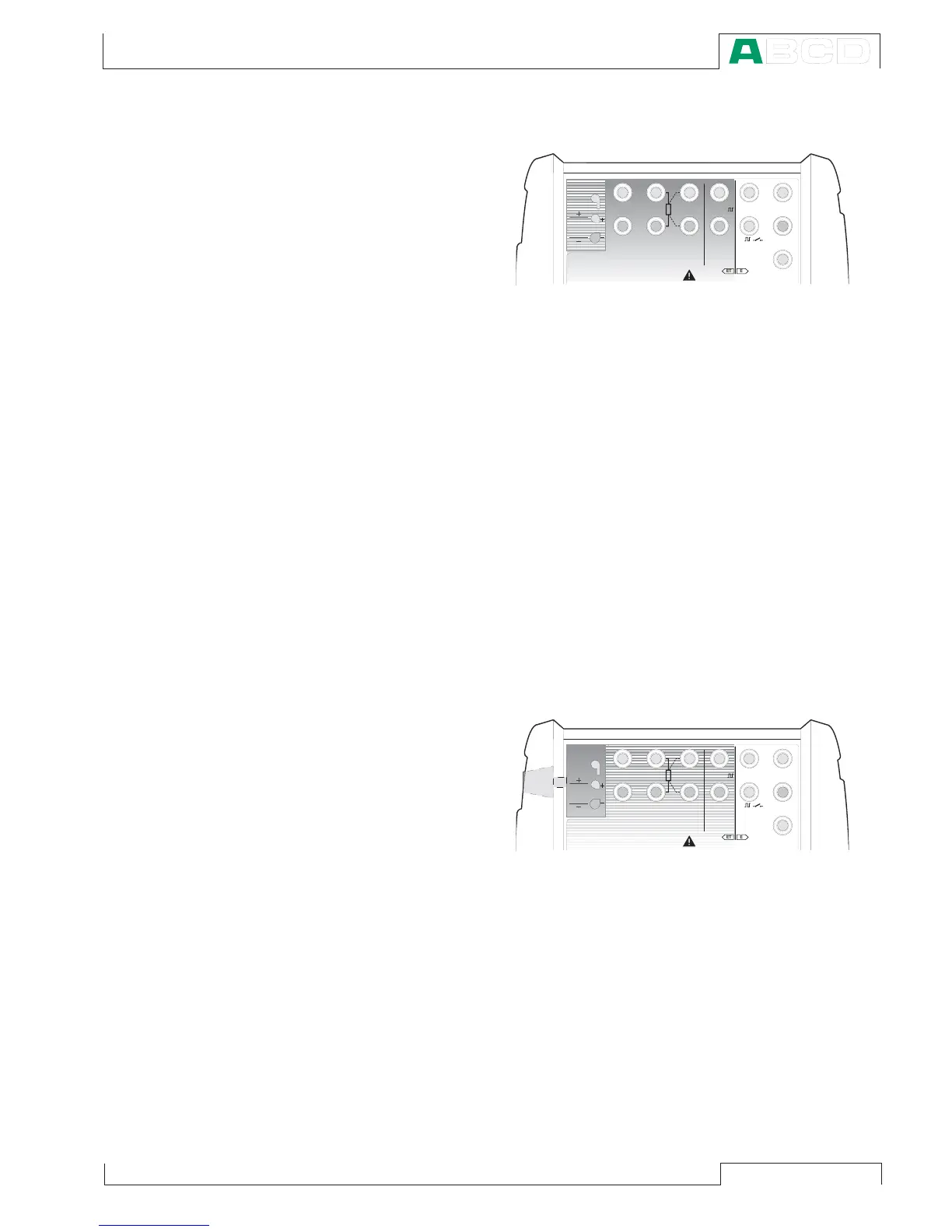

Electrical and Temperature Module (ET module)

The ET module is spe-

cially designed for tem-

perature instrument

calibration needs. It is

not however restricted

to only temperature in-

strument use because

it can also generate

voltage, frequency and pulses. Additionally the ET module is able

to sink current.

Measuring capabilities:

• Low Voltage measurement and T/C measurement using ei-

ther the internal reference junction or the Low Voltage connec-

tors.

• Resistance and RTD measurement.

Generation/simulation capabilities:

• T/C simulation using either the internal reference junction or

the Low Voltage connectors.

• Resistance and RTD simulation.

• Voltage, frequency and pulse generation.

• Current sink.

Reference Junction Module

The T/C measurement/

simulation internal ref-

erence junction is an

optional addition to the

ET module. It is spe-

cially designed for

MC5-IS and therefore

best suited for reference junction compensation when calibrating

thermocouples or instruments connected to a thermocouple.

The Reference Junction Module is suited for all standard T/C plugs

and stripped wires. Open the fixing screw on the left side of MC5-IS

before connecting the wires/plug to the Reference Junction Mod-

ule. Make sure to connect the wires/plug as the polarity is indicated

on the Reference Junction Module. Remember to tighten the fas-

tening screw when the wires/plug are connected. Hand tightening

is adequate. Do not pull out the wires/plug without first opening the

fixing screw. Otherwise you might damage the contact surface of

the connectors.

T / C , L o w V

H A R T

m e a s / s i n k

V , ,

V ,

 



 



s i n k

C o m

R , R T D

L o w V

M E A S U R EO U T P U T

E T E

T / C I N T . R J

S E N S O R M E A S U R E & S I M U L A T E

U o : 1 6 V

I o : 2 4 m A

P o : 1 4 5 m W

T / C

W I R E S

O N L Y

4 w m e a s

3 w m e a sm e a s / s i m
