APPENDIX 02: Memory Cards
Data Areas
Honeywell produce a series of memory cards based on the ICAO/ARINC geographic areas for
Skymap IIIC and Tracker IIIC that cover the entire world. Each card for each area contains the
operating software, the appropriate Jeppesen aeronautical data and cartographic data to a high
resolution. Also included is a low resolution map of the rest of the world.

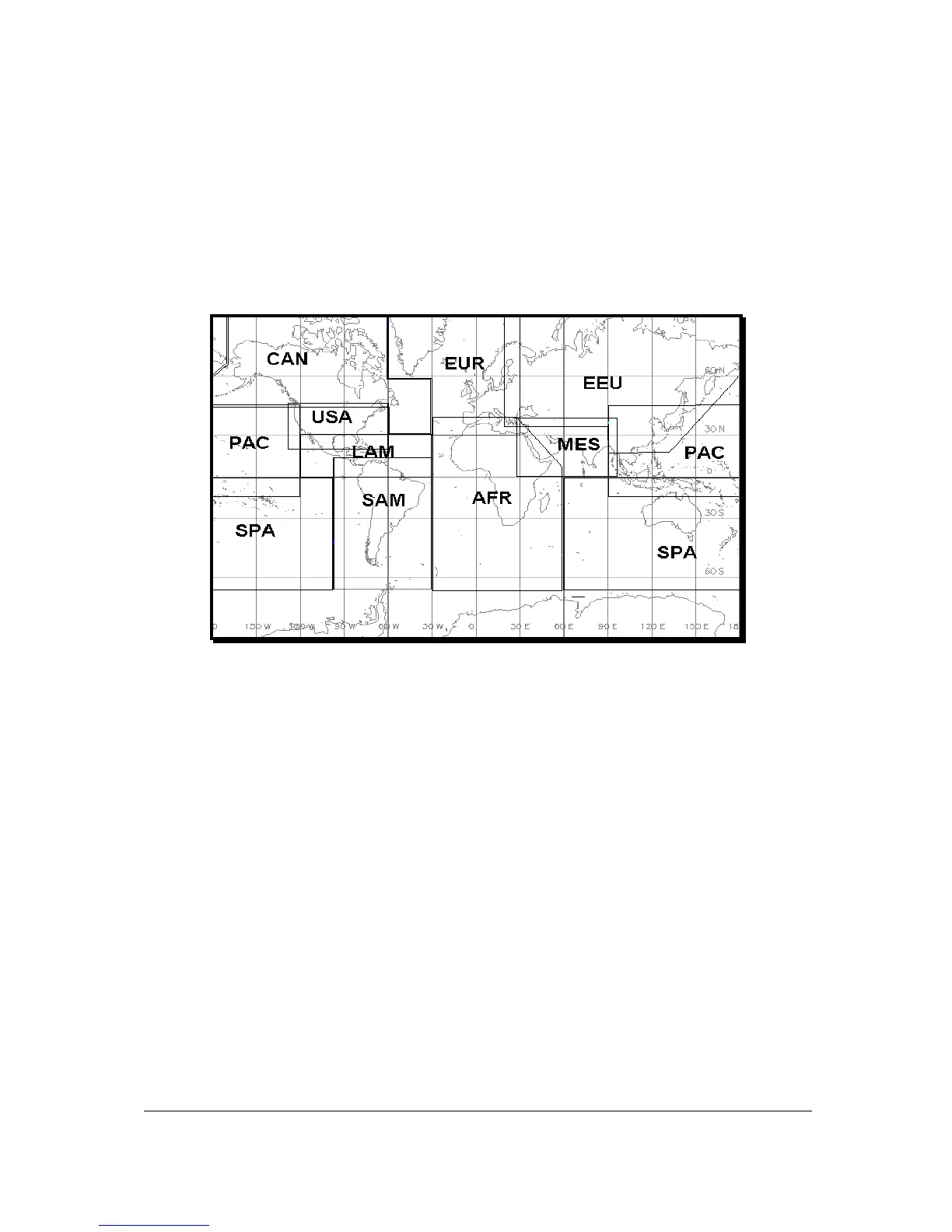

The ten ICAO/ARINC areas along with their three letter identifiers are:
EUR Europe CAN Canada MES Middle East
USA USA PAC Pacific EEU Eastern Europe
SPA South Pacific LAM Latin America AFR Africa
SAM South America
These areas are combined in various ways to produce memory Cards. There are three large
transiting cards available covering the entire world that contain the following data:
AMR Americas - comprising CAN, USA, LAM, SAM
ATI Atlantic International - comprising EUR, AFR, EEU, MES
PAI Pacific International - comprising PAC, SPA, EEU, MES
Numerous other area combinations are also available. Please contact your Bendix/King Dealer for full
details of data card availability.
Changing the memory card.
To change the Data Card follow these simple steps:
1. Remove the power/data plug and place the unit face down on a soft surface. A piece of foam or a
cushion is ideal. Remove the case back by rotating the two DZUS fasteners one turn counter
clockwise.
2. Grasp the data card by its edges and pull it straight out of its socket. Do not twist the Card out of
the socket, this could bend or break the gold pins. Being careful to align the card with the socket
then press the new card firmly into place.
