3. Remove the plastic ring from the collimator by opening the
screws on the side of the collimator.

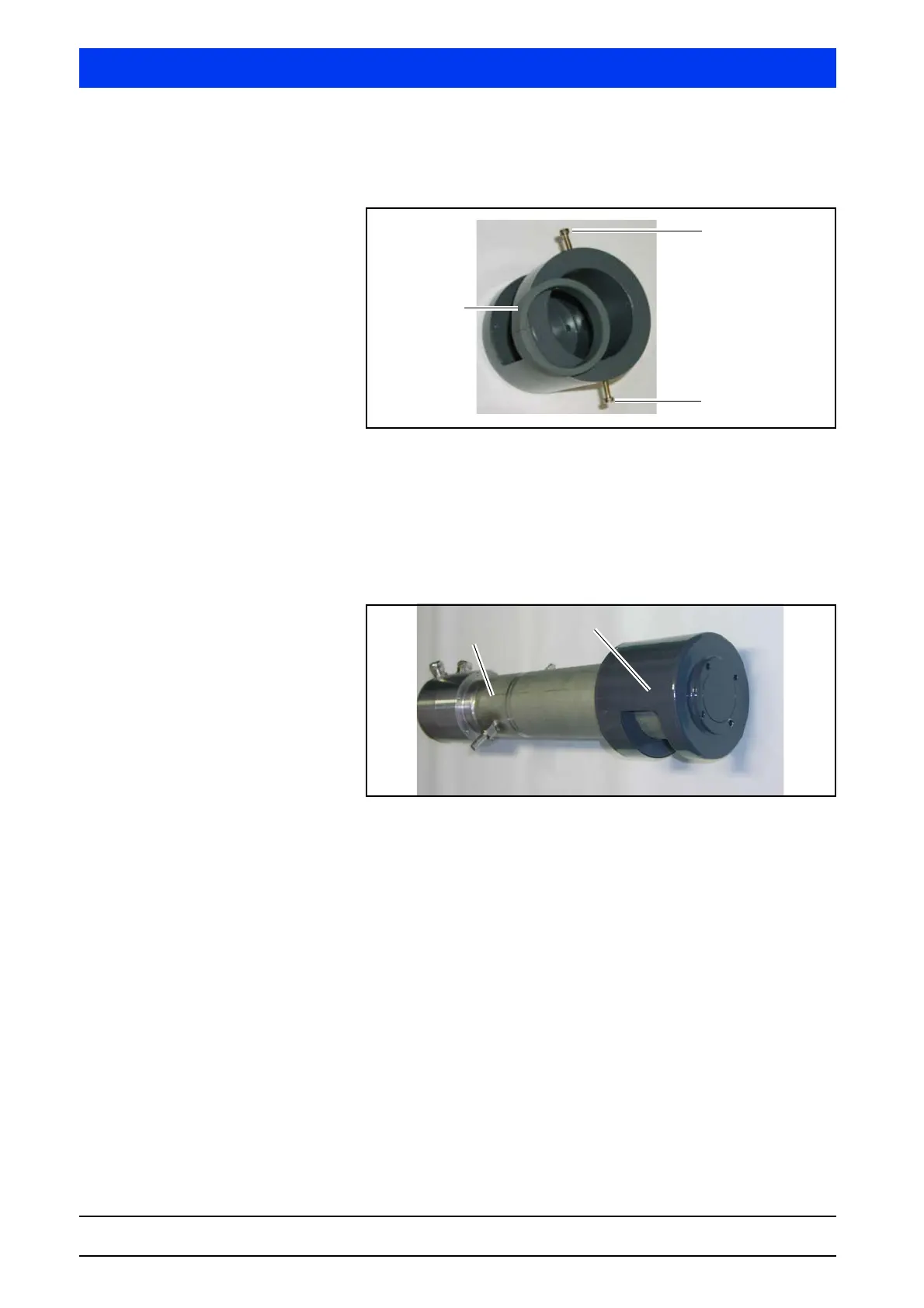

Fig. 2-13 Collimator for detector
4. Slide the collimator over the water cooling system, so that the
beam window is facing the source. Position the collimator and
water cooling relative to the pitch circle of the detector. Make
sure that the position of the cooling nozzle is arranged so that
later you have unhindered access to the installation of the
water supply.
Fig. 2-14 Detector with water cooling and collimator
Please read the information on the water cooling on page 2-178.
Collimator
Detector with
water cooling
