SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 187
Volume 2 2 Installation
2

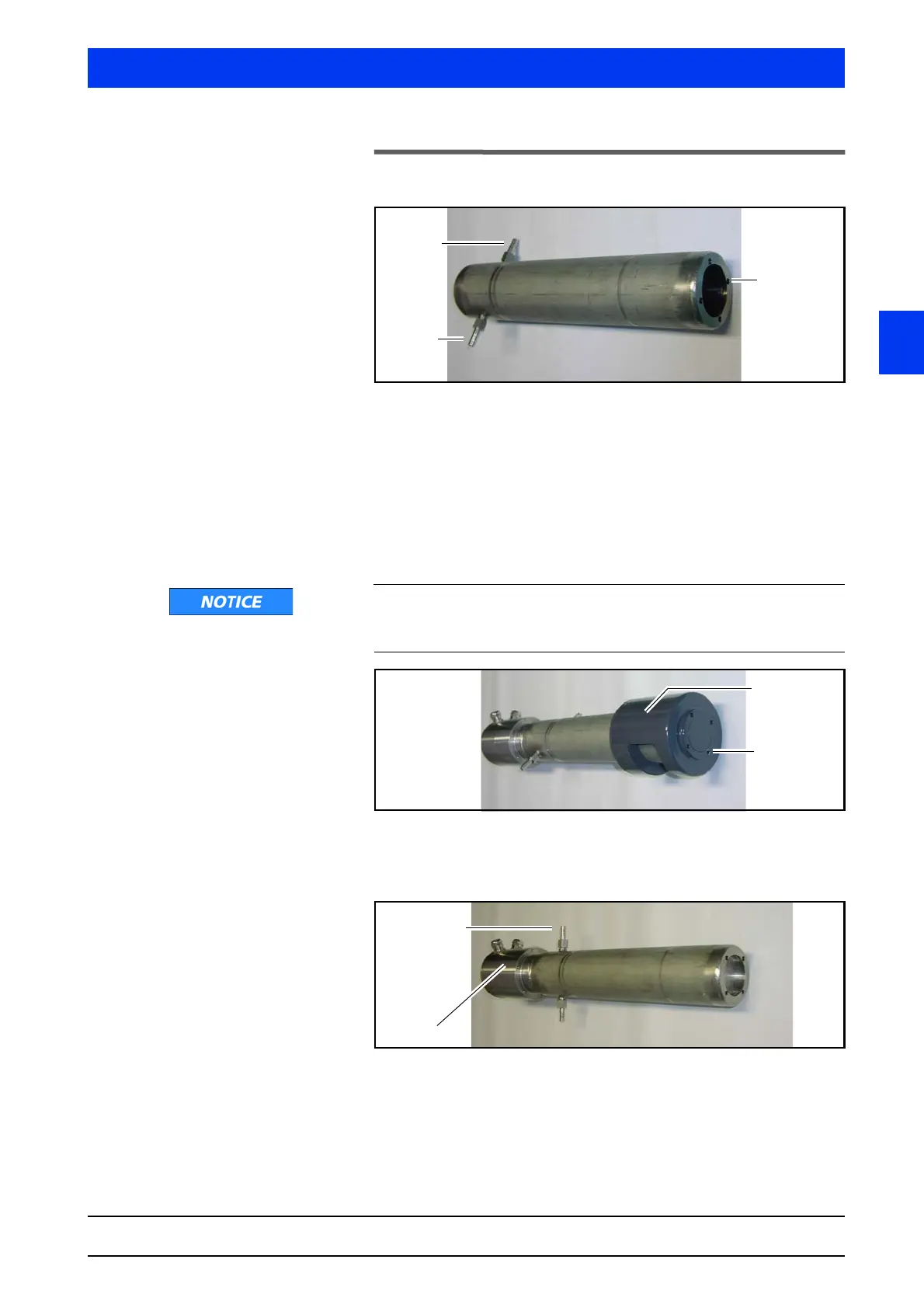

2.5 Water Cooling
Fig. 2-10 Water cooling
If you have ordered the detector together with the water cooling,
the water cooling is already mounted.
If you order the water cooling later, then you have to install it
according to the following instructions.
Installing the water cooling 1. Remove the four front screws and pull the collimator from the
detector.
To attach the collimator and the water cooling later to the detector
again, you need four screws that are 5 mm longer than the original
screws (not included).
Fig. 2-11 Mounting screws for collimator
2. Slide the cooling jacket over the detector.
Fig. 2-12 Detector with water cooling
Cooling
nozzle
Drilled holes for
screws
Cooling
nozzle
Collimator
Screws (about
30mm long)
