7.3 Linear and Exponential
This function is used only for 1-2 point calibrations.
Linear The relation between level and count rate is linear.

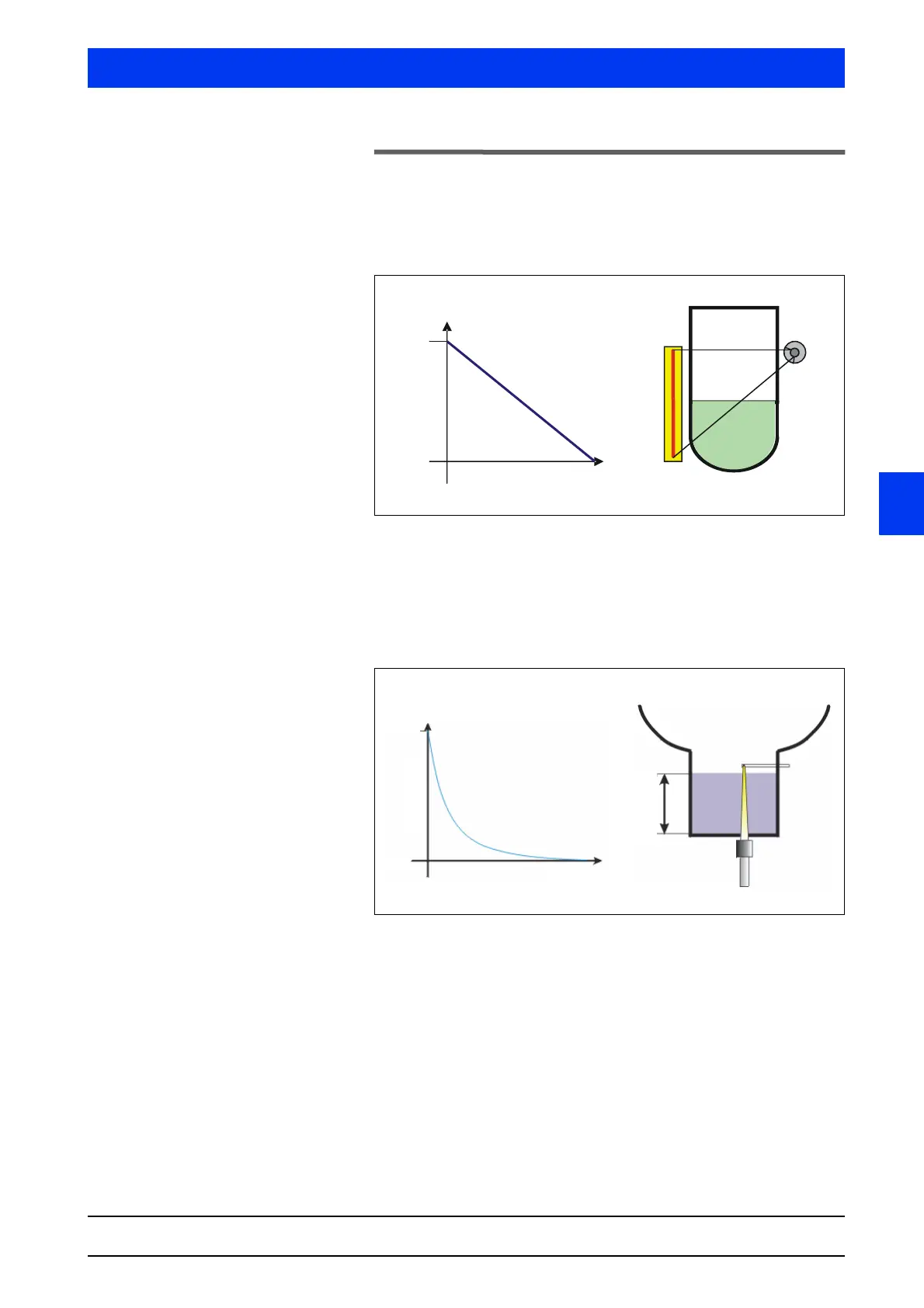

Fig. 7-4 Linear relation
Linear calibration is used in applications involving rod sources and
point detectors
Exponential The relation between level and count rate is an exponential func-
tion.
Fig. 7-5 Exponential
This calibration is used in applications involving point sources and
point detectors
100%
0%
CPS
Meas. range
100%
0%
CPS
Meas. range
Meas. path
