6.1 Cable glands
The sealing of the screwed fittings on the cable can be made of sev-
eral sealing rings, depending on the screwed fitting, which have to
be adapted to the diameter of the cable. The sealing rings inserted
into the screwed fittings allow a relatively large cable clamping
area. Remove the sealing rings from the screwed fitting to adapt
them to the cable diameter used. A list of screwed fittings available
from BERTHOLD TECHNOLOGIES can be found in the manual for
explosion protection on page 1-47.
The following is an example for a M20 cable gland with additional
sealing ring for small cable diameters, that must be removed for
cables with larger diameter.

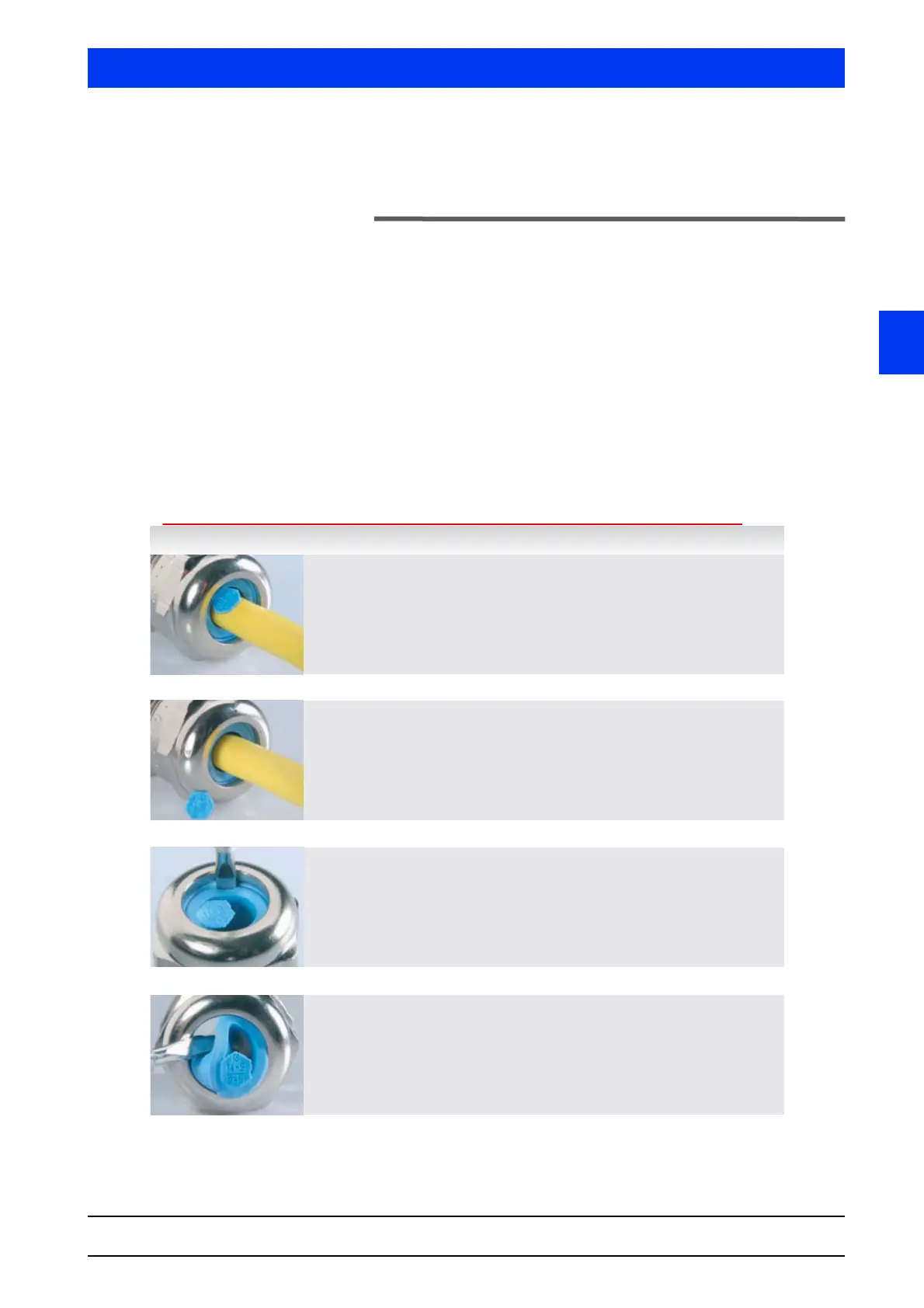

Assembly instructions for ID No. 55412 and 56086
blueglobe
®
– Montage
blueglobe
®
– Installation
Abb. 1
Fig. 1
blueglobe
®
mit kleinem Kabeldurchmesser
Bei IP 68 Installationen globemarker
®
außenliegend
blueglobe
®
with small cable diameter
With IP 68 installations globemarker
®
on the outside
Abb. 2
Fig. 2
blueglobe
®
mit kleinem Kabeldurchmesser
oder globemarker
®
entfernen
blueglobe
®
with small cable diameter
or removing globemarker
®
Abb. 3
Fig. 3
blueglobe
®
mit großem Kabeldurchmesser
Bei großem Kabeldurchmesser Inlet ent fernen: Schraubendreher
senkrecht in Trennnaht einstechen
blueglobe
®
with large cable diameter
With a large cable diameter – remove inlet. Insert screwdriver
vertically into separating seam
Abb. 4
Fig. 4
blueglobe
®
mit großem Kabeldurchmesser
Inlet aushebeln
blueglobe
®
with large cable diameter
Lift out the inlet
