54733-10BA2L
2 – 186 02.2017
2 Installation Volume 2

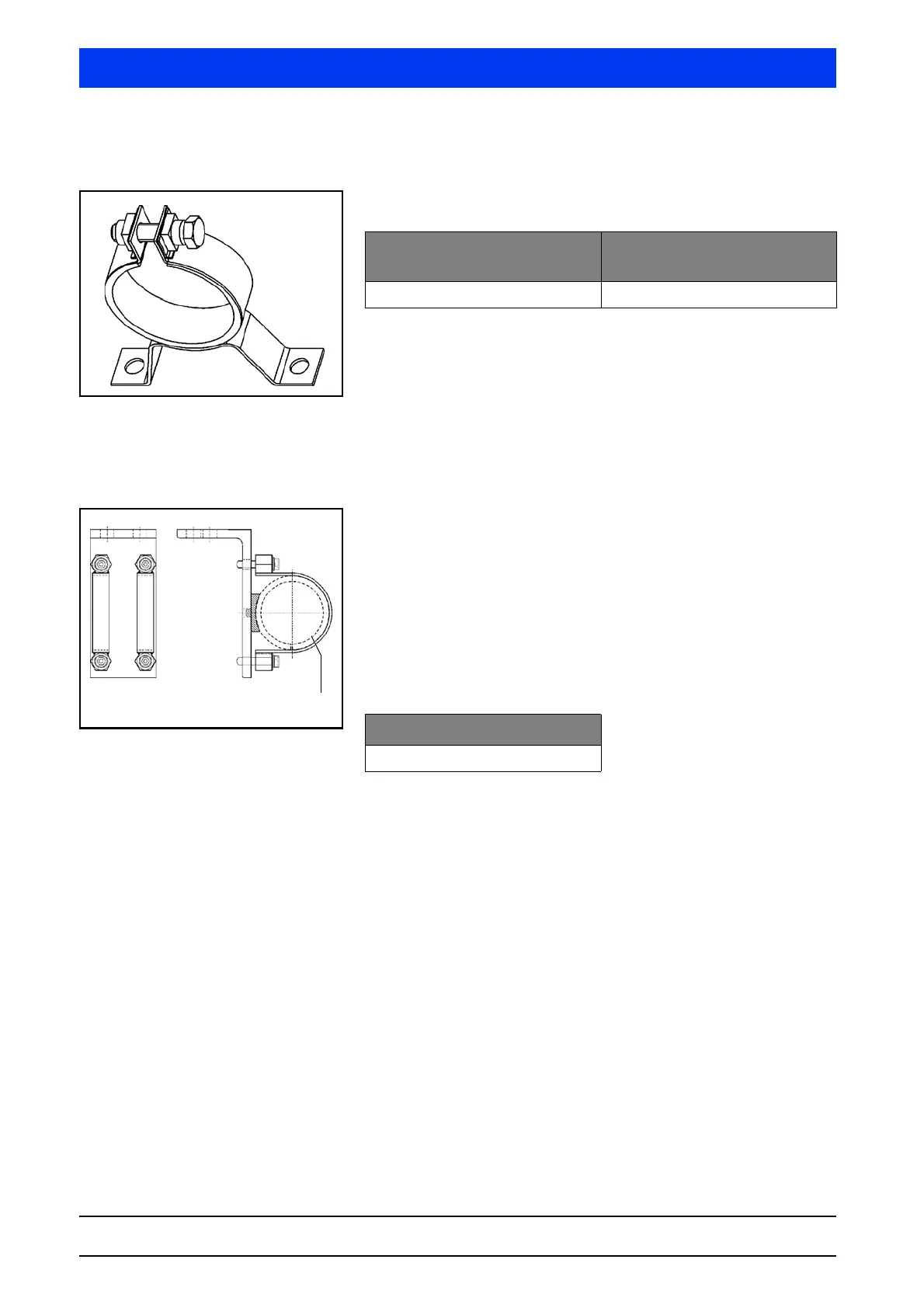

2.4.4 Installation Procedure using Fastening Clamps
Stainless steel clamps are available for the installation of the detec-
tor.
1. Make a suitable bracket for the container according to the
drawing on page 2-250.
2. Mount the bracket either directly on the container or on a stable
support.
3. Mount the detector with the clamps on the bracket (see chapter
5.1, "TI LB 480 Level").
2.4.5 Installation Procedure with Mounting Kit
A robust stainless steel holder is available instead of the clamps.
The holder consists of an angle on which two clamps are already
mounted. You can bolt or weld the holder on a bracket.
For detectors without water cooling system you have to use the
plastic rings shown with dashed lines in the drawing to the left for
installation. They compensate for the difference in diameter
between detectors with or without water cooling. Thus, the same
bracket can be used for detectors with and without water cooling.
All metal parts of this holder are made of stainless steel. You find
the technical drawing with dimensions in chapter 5 on page 2-241.
1. Make a suitable bracket for the container according to the
drawing on page 2-251.
2. Mount the bracket either directly on the container or on a stable
support.
3. Mount the holder with the detector on the bracket.
Clamps for CrystalSENS with-
out water cooling
Clamps for CrystalSENS with
Water cooling
ID No. 31346 (1 set = 2 clamps) ID No. 31347 (1 set = 2 clamps)
Mounting Kit for CrystalSENS
ID No. 39246
