BERTHOLD TECHNOLOGIES LB 480 - 11.1 Multi Detector Connection Diagram

450 pages

Save Page as PDF

To Next Page

To Previous Page

SENSseries LB 480 Level measurement

BERTHOLD TECHNOLOGIES GmbH & Co. KG

2 – 275

Volume 2 5 Technical Information

LB 480

Dimensions in mm

Abmessungen in mm

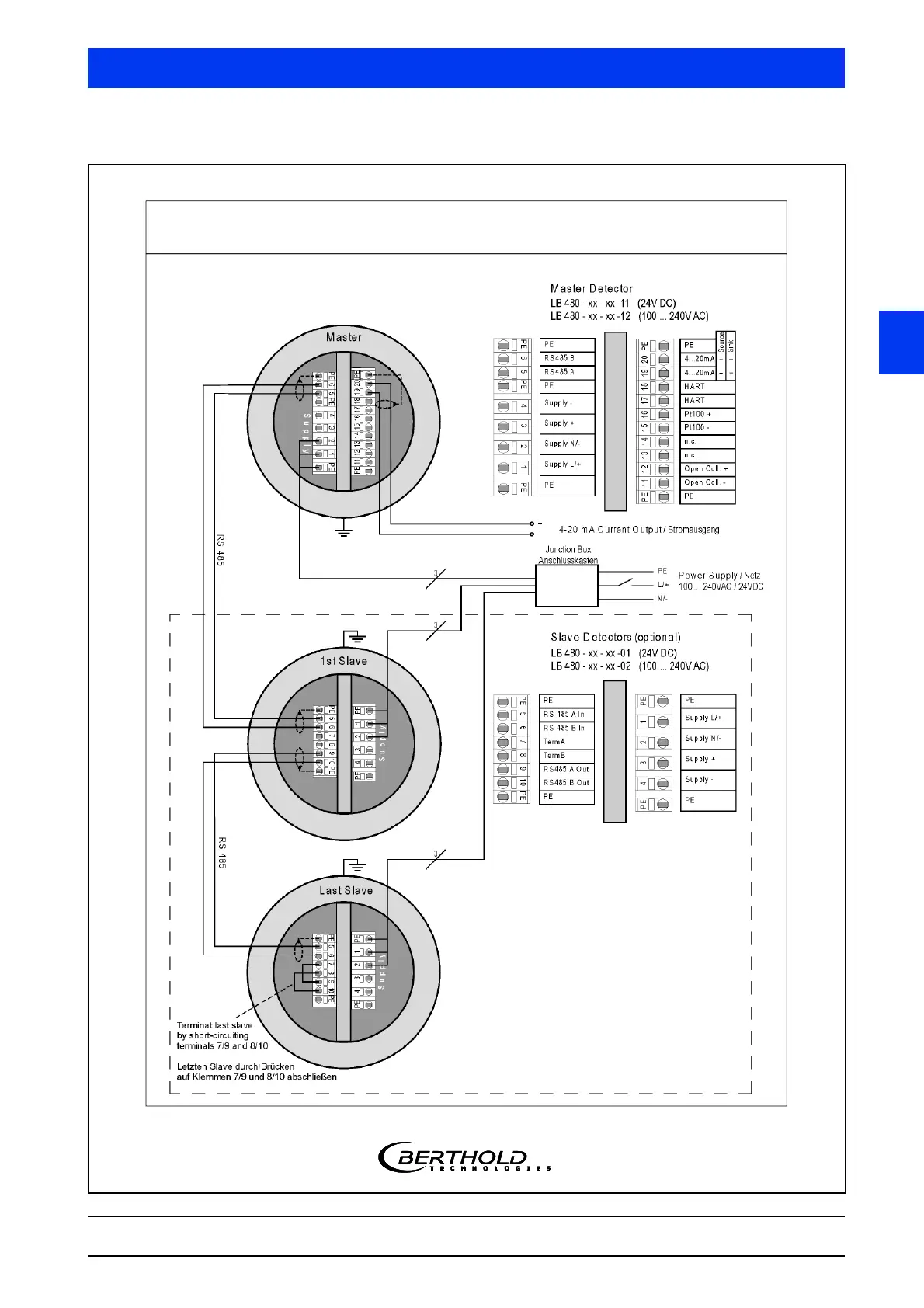

11.1 Multi Detector Connection Diagram

Multidetektor-Anschlussplan

Up to 16 slaves can be connected at

one master.

Bis zu 16 Slaves können an einen

Master angeschlossen werden.
