SENSseries LB 480
BERTHOLD TECHNOLOGIES GmbH & Co. KG
1 – 41
Volume 1 5 Explosion Protection
1
5.7.2 Ex-i – Concept
The RS485 connection to any connected slave detectors is designed
with increased safety.
LB 480-xx-3B
LB 480-xx-4B

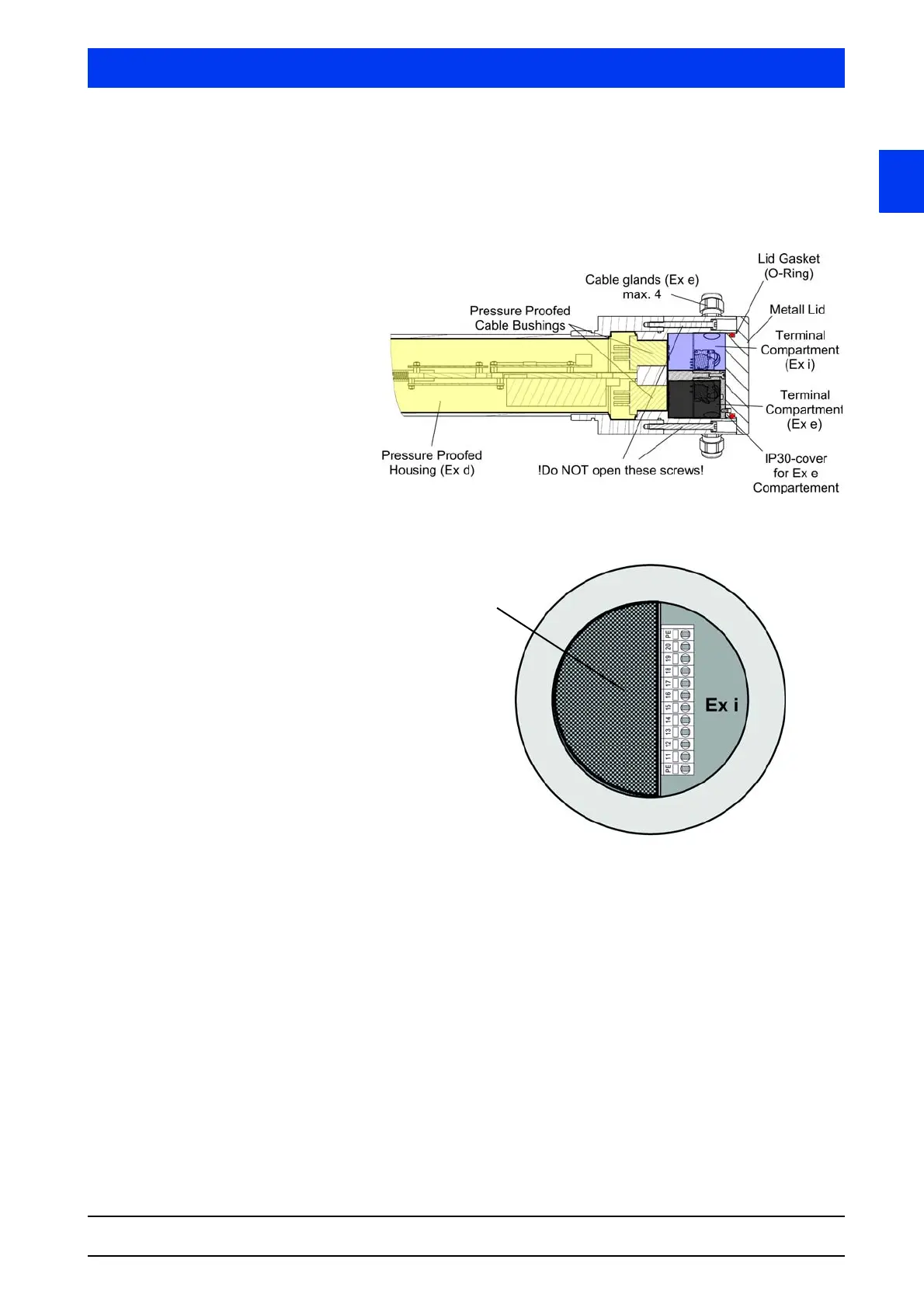

Bild 5-3 Ex-i - Concept LB 480-xx-3B, LB 480-xx-4B
semicircular
cover for Ex-e
compartment with
IP30 protection
type
Master Terminal Compartment
