bimota DB7 - Front Brake Control

CONTROLS AND
DEVICES
5

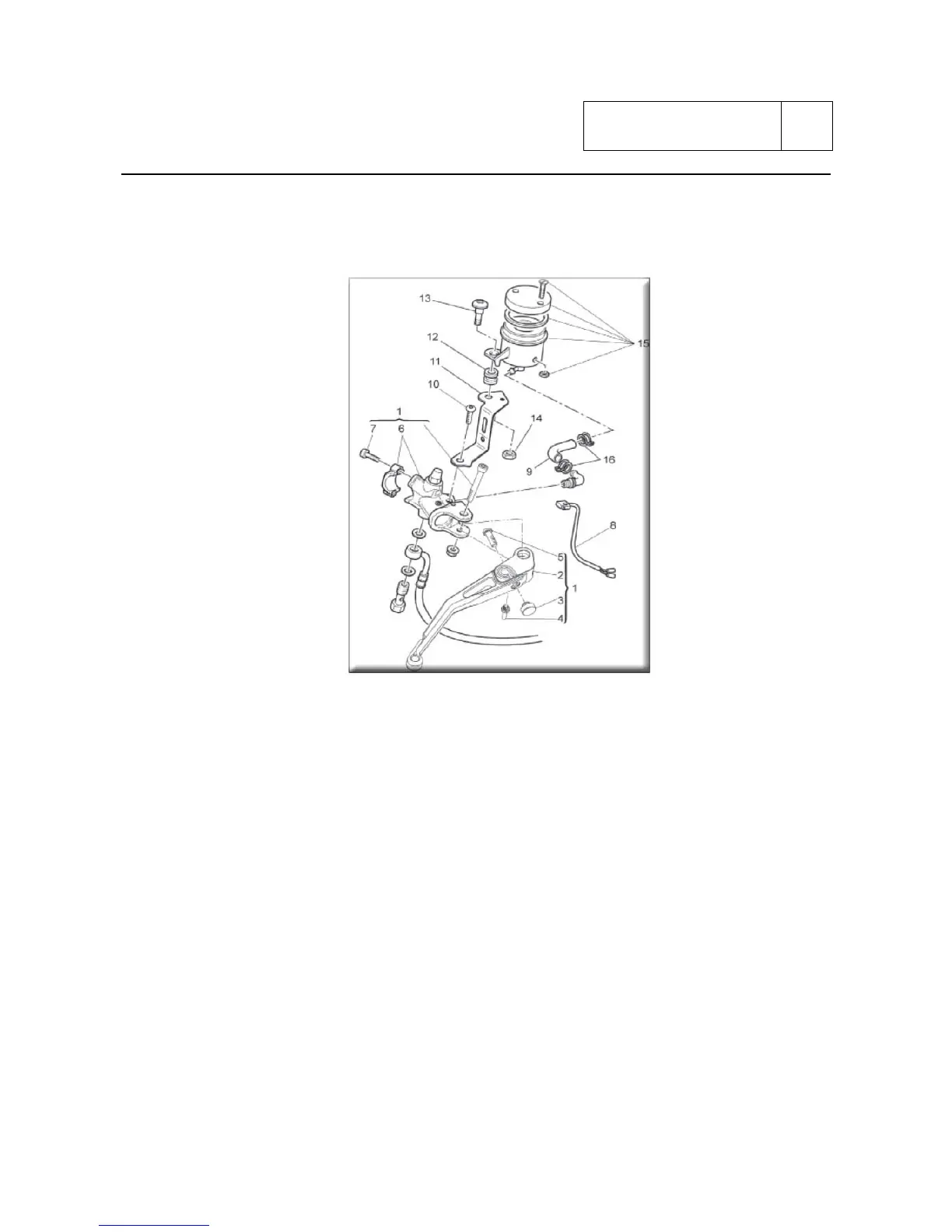

5.2 - FRONT BRAKE CONTROL
1) complete master cylinder
2) aluminium brake lever
3) brake lever pawl
4) microswitch lever pivot
5) brake lever regulator pivot
6) radial master cylinder
7) screw
8) microswitch
9) rubber hose
10) screw
11) brake fluid tank plate holder
12) small rubber
13) Special screw
14) nut
15) brake fluid tank
16) cable tie
Sub 5-4
