Disassembly of front brake master cylinder
CAUTION
The manufacturer of the brake pump, considering the importance of this part in terms of safety,
suggests not working in any way inside the pump.
An overhaul not correctly done, can seriously endanger the rider safety.
The replacement operation must be limited to the control lever, the oil reservoir with relative holder
components and pump holder.
Empty the brake circuit.
Disconnect the brake control hose from the master cylinder group.

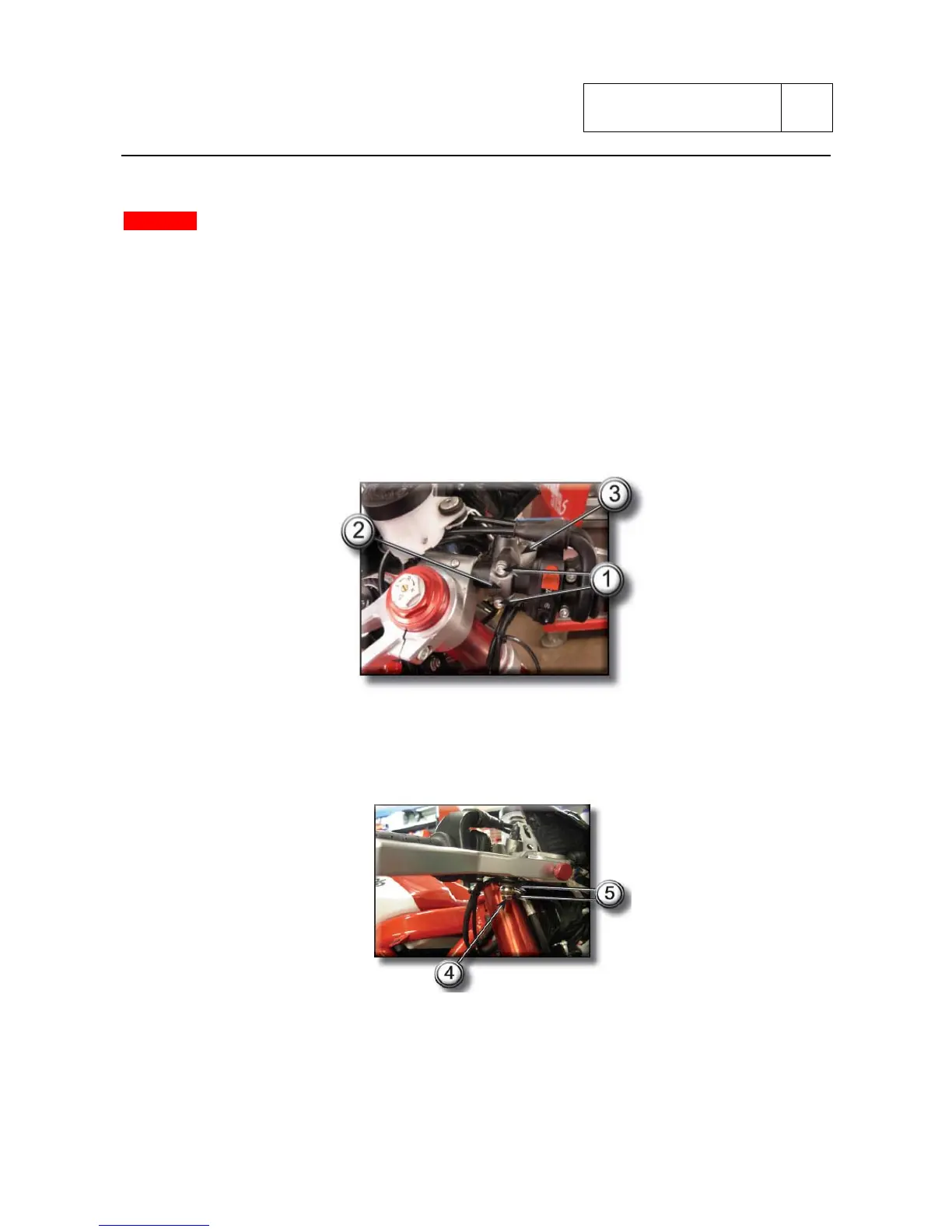

Unscrew the fixing screws (1) of the mounting clamp (2) and remove the front brake master
cylinder (3) from handlebar. For the removal of the pump unit components (3) refer to the exploded
drawing.
When you reassemble the hoses is necessary to put the junction (4) with gaskets (5) and tighten
the junction to the correct tightening torque.
Reconnect the brake pump hose to the master cylinder unit.
After having reassembled the clutch control fill the brake circuit using the proper oil.
Sub 5-5
