5.1.6 Top Side L

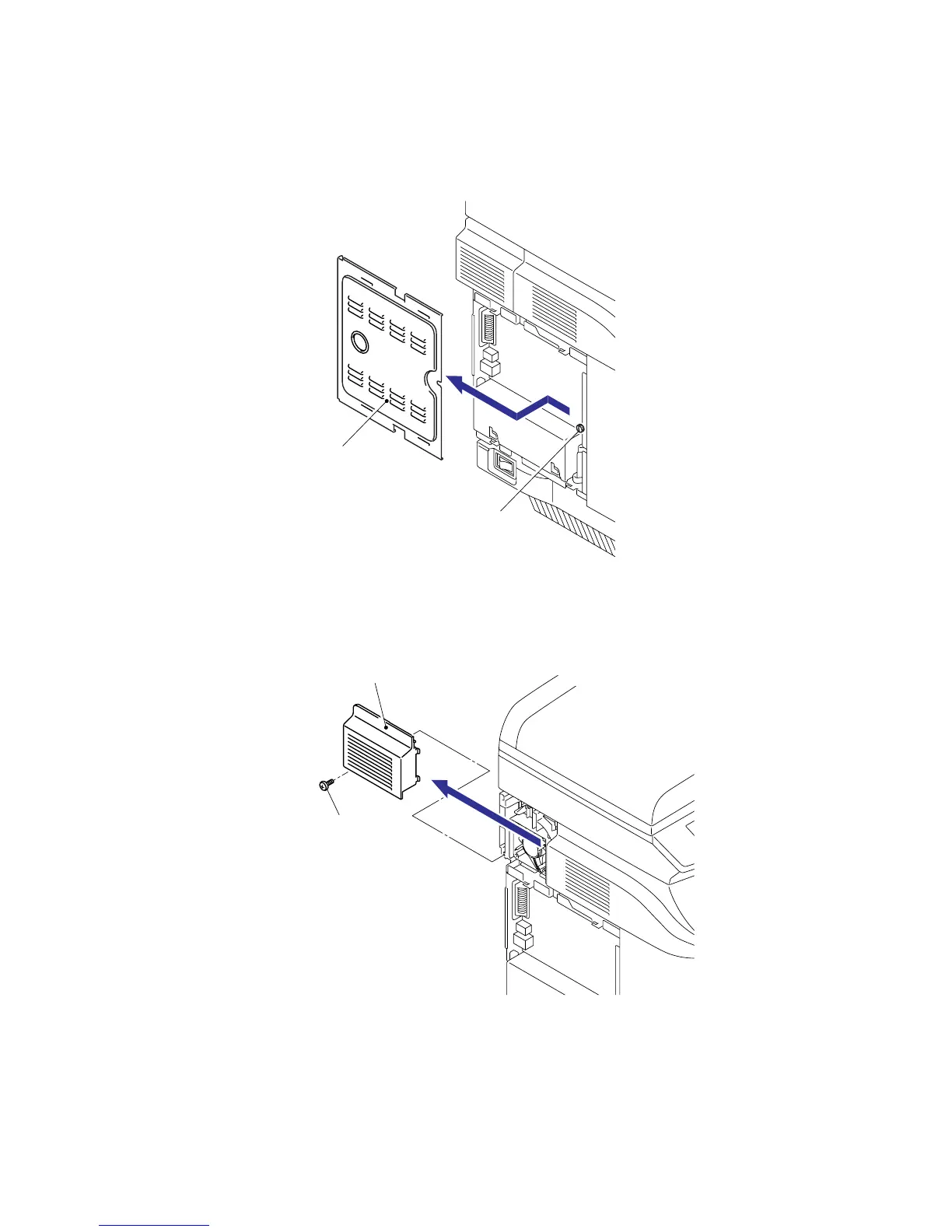

(1) Remove the screw to remove the shield plate.
Fig. 5-9
(2) Remove the screw and then remove the top side L.
Fig. 5-10
Screw
Shield plate
Top side L
Screw
