Brother MFC-9420CN - Panel

Confidential
5-31
5.1.12 Panel

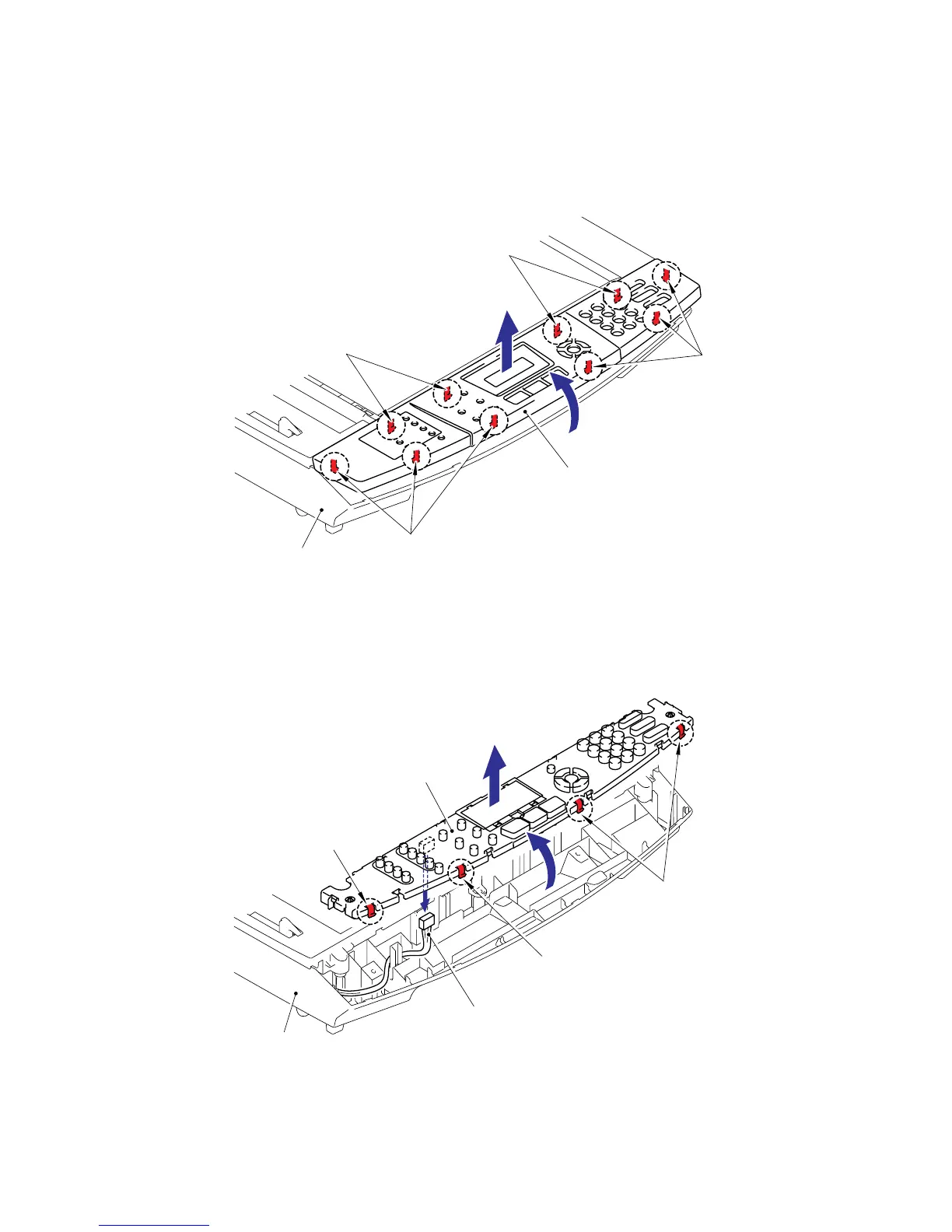

(1) Lift up the front edge of the panel cover ASSY and release the six hooks “A”.
(2) Release the four hooks “B” to remove the panel cover ASSY.
Fig. 5-47
(3) Release the four hooks to float the panel unit.
(4) Remove the panel harness ASSY from the panel cover ASSY assembled on the back of the
panel unit.
Fig. 5-48
Hooks “A”
Hooks “B”
Panel cover ASS
Y
Hooks “A”
Hooks “B”
Scanner unit
Hooks
Hook
Hook
Panel harness ASS
Y
Panel unit
Scanner unit
