Brother MFC-9420CN - Pull Arm;Scanner Slider L, R

Confidential
5-29
5.1.9 Pull Arm/Scanner Slider L, R

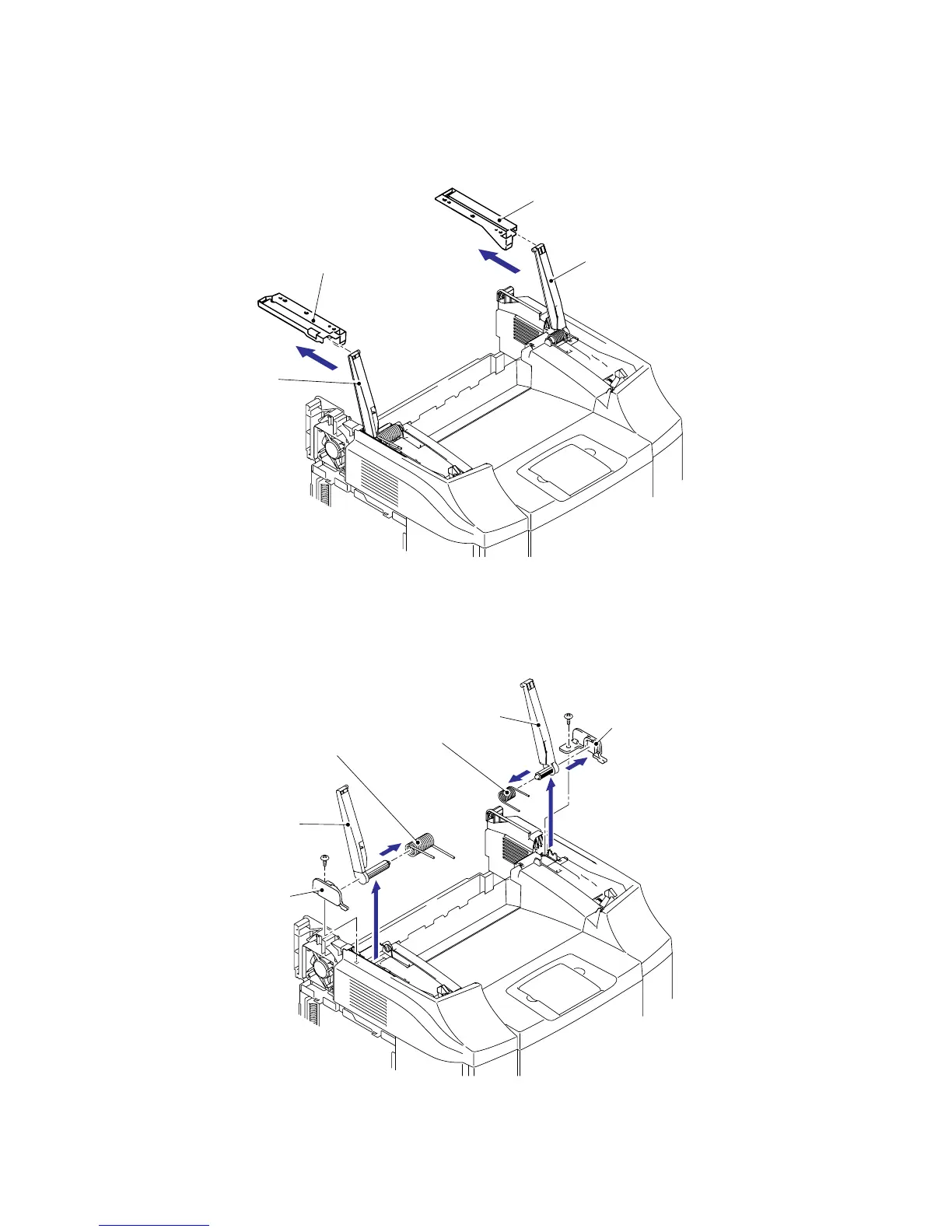

(1) Remove the scanner slider L, R from the pull arm.
Fig. 5-43
(2) Remove the screw to remove the pull arm (L), pull arm guide (L) and pull arm spring.
(3) Remove the screw to remove the pull arm (R), pull arm guide (R) and pull arm spring.
Fig. 5-44
Scanne
r
slider L
Scanne
r
slider R
Pull arm spring
Pull arm (R)
Pull arm (L)
Pull arm (R)
Pull arm (L)
Pull arm spring
Pull arm guide (R)
Pull arm guide (L)
