Brother MFC-9420CN - Top Side R; Cleaning Roller Cover PU; Cleaning Roller PU

Confidential
5-38
5.1.16 Top Side R
(1) Open the back cover.
(2) Remove the screw to remove the top side R.

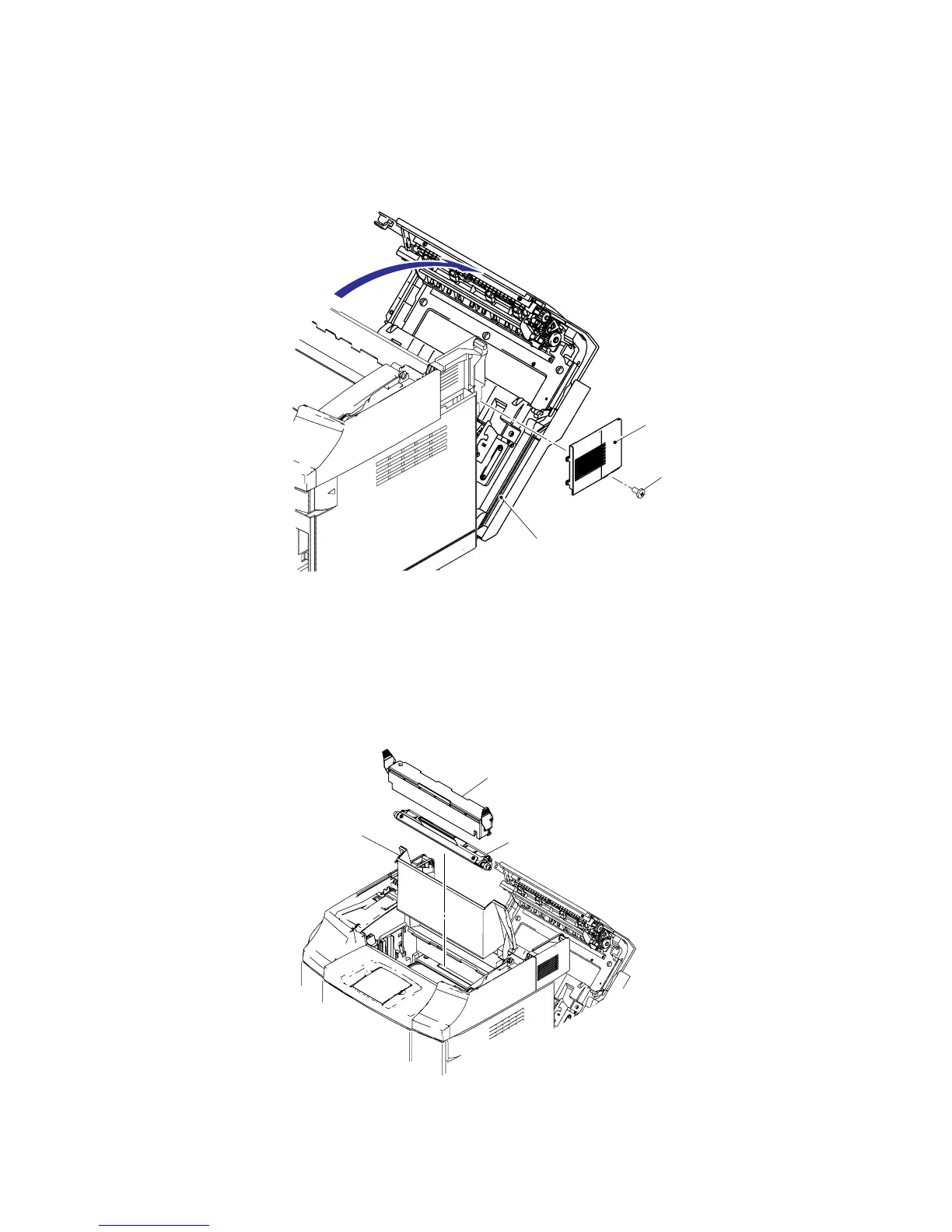

Fig. 5-60
5.1.17 Cleaning Roller Cover PU / Cleaning Roller PU
(1) Open the center cover.
(2) Release the two hooks to remove the cleaning roller cover PU.
(3) Remove the cleaning roller PU.
Fig. 5-61
Screw
Top side R
Back cove
r
Center cover
Cleaning roller cover PU
Cleaning roller PU
