Brother MFC-9420CN - ADF Unit

Confidential
5-13
5.1.7 ADF Unit

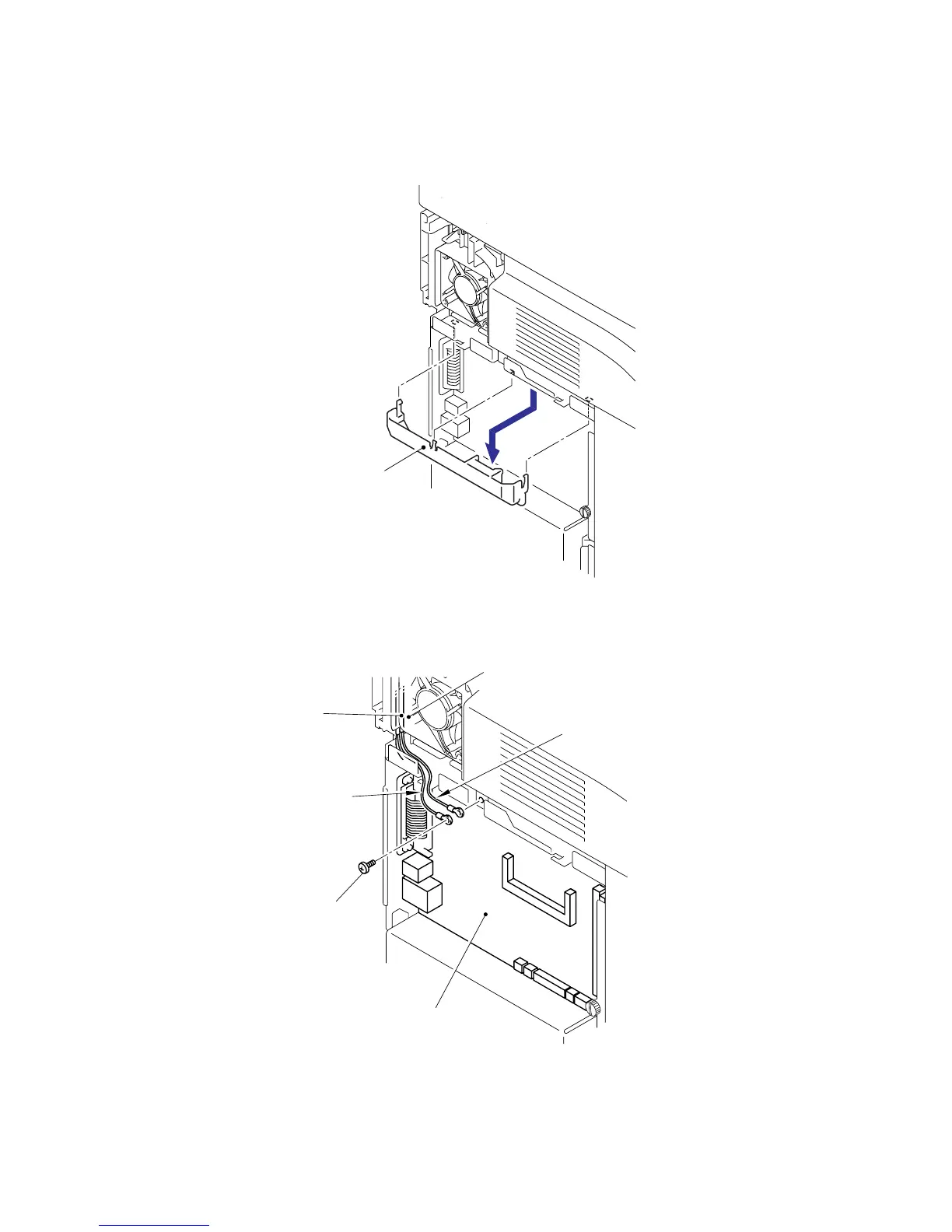

(1) Remove the harness cover.
Fig. 5-11
(2) Remove the screw to remove the two ground wires.
Fig. 5-12
Ground wire
Ground wire
Screw
Main PCB
ADF harness
FB motor harness
Harness cove
r
