Brother MFC-9420CN - Transfer Roller ASSY PU; Transfer Base ASSY PU

Confidential
5-69

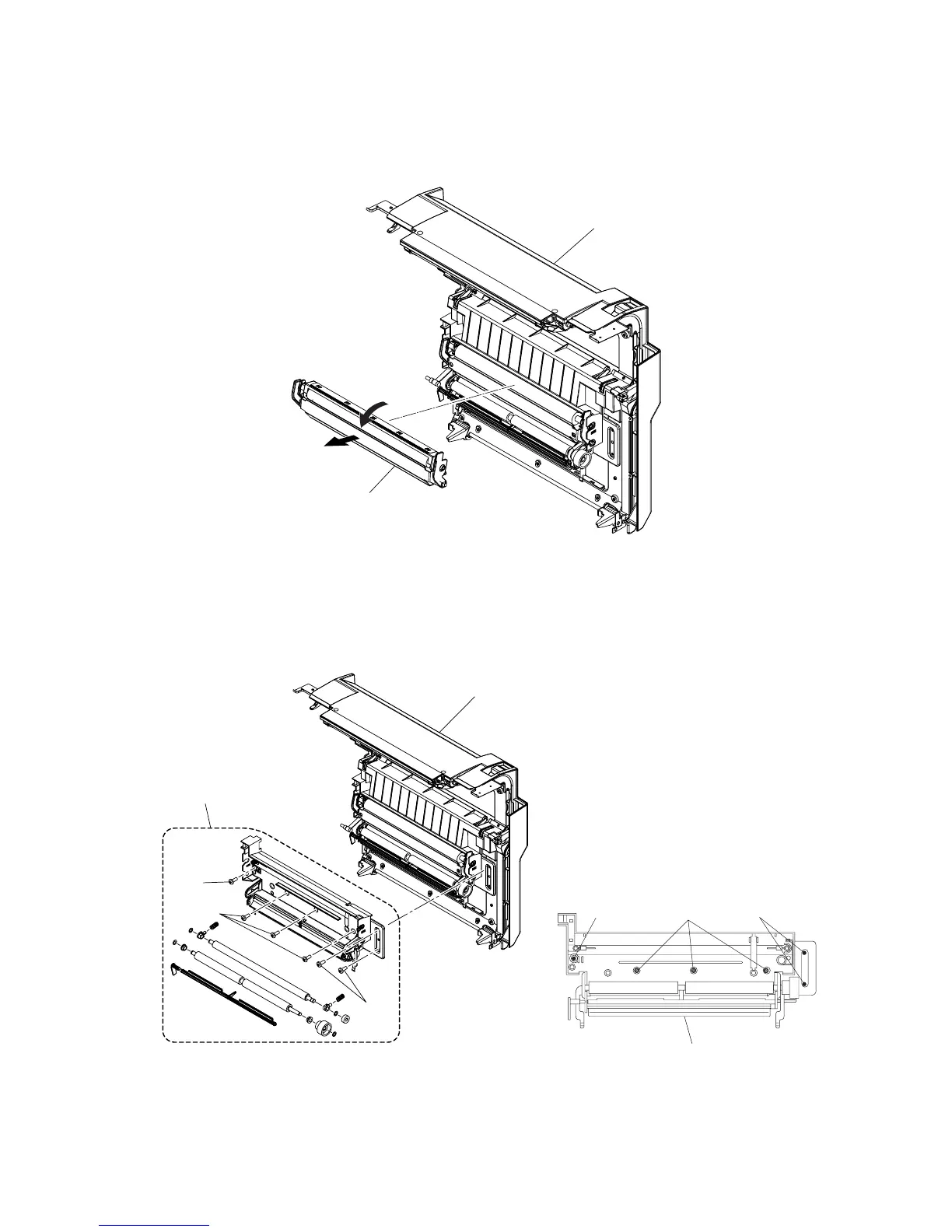

5.1.60 Transfer Roller ASSY PU
(1) Remove the transfer roller ASSY PU.
Fig. 5-107
5.1.61 Transfer Base ASSY PU
(1) Remove the setscrew (ST3x6, 3 pieces and BT3x8, 3 pieces) of the transfer base ASSY PU.
(2) Remove the transfer base ASSY PU.
Fig. 5-108
Paper exit unit
Transfer roller
A
SS
Y
PU
Paper exit unit
Transfer base
A
SS
Y
PU
ST3
x
6
ST3
x
6
BT3x8
Transfer base
A
SS
Y
PU
ST3
x
6
ST3
x
6 BT3x8
