5-41

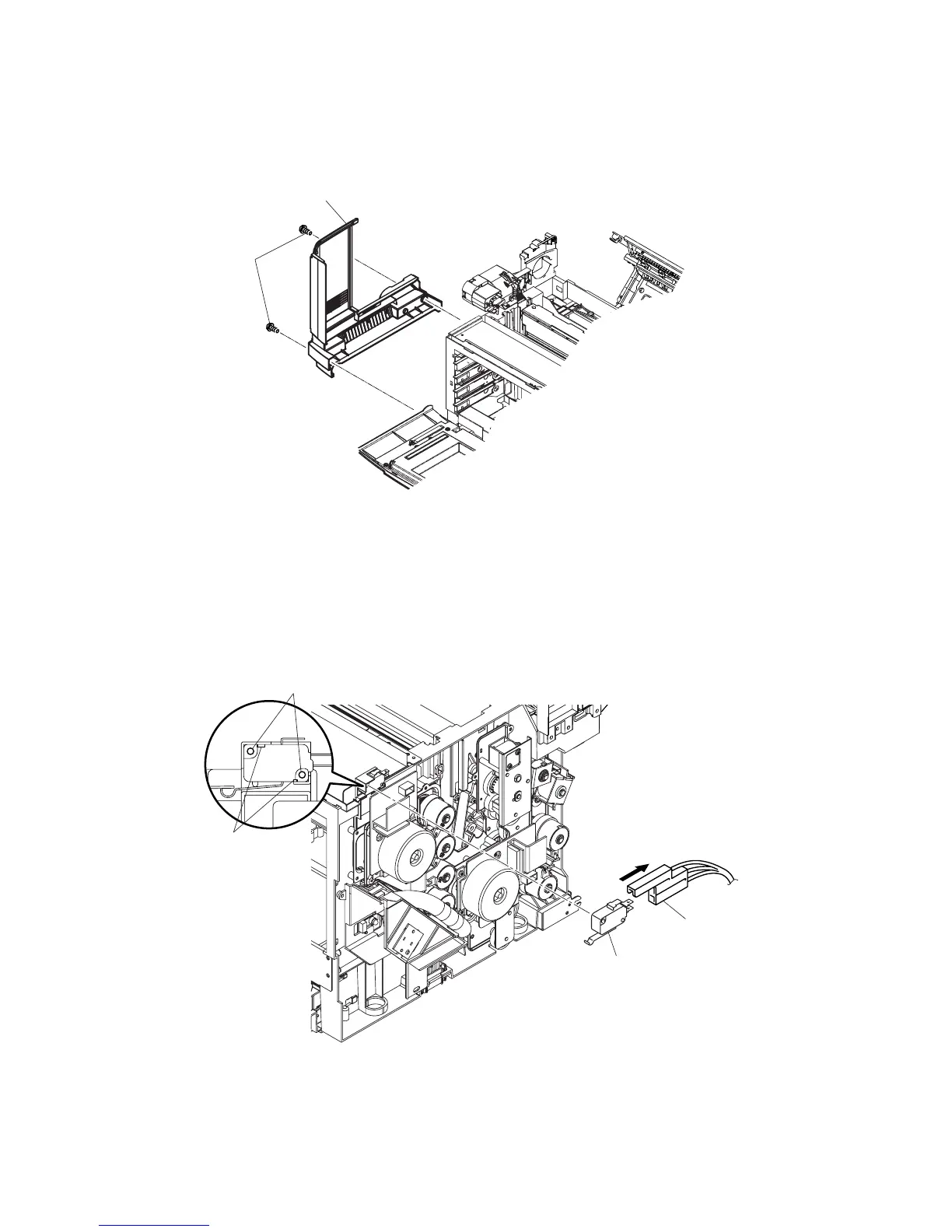

5.1.21 Side Cover LF
(1) Remove the two screws to remove the side cover LF.
Fig. 5-65
5.1.22 Interlock Switch PU (Front)
(1) Disconnect the connector connecting to the interlock switch PU (front).
(2) Remove the interlock switch PU (front) from the switch base (DF). The switch is supported
by the hooks and shaft.
Fig. 5-66
Interlock switch PU (front)
Connecto
r
Shaft
Hooks
Screws
Side cover LF
