Brother MFC-9420CN Service Manual

Confidential
5-53
5.1.41 Toner Sensor PU (TPD)
(1) Remove the setscrew (BT3x8 and BT3x6, 1each) of the toner sensor PU (TPD).
(2) Remove the connector (inside the frame) connecting to the toner sensor PU (TPD).
(3) Remove the toner sensor PU (TPD) from the frame.
<Confirmation Items>
• Is the grounding wire securely installed to the indicated position?
• Isn't any harness caught?
• Is the appropriate screw used?
• Is each output terminal of the HV power supply PU installed properly?
• After above confirmation, confirm the safety through the withstand voltage test or with
the insulation tester.
CAUTION
Replacement of the toner sensor PU (TPD/TTR) requires the substantial disassembly and
also reassembly. As the inappropriate assembly procedures and the wrong use of screws
affect the product safety and the product performance, the appropriate assembly procedures
and the caution items must be respected. (This work requires the insulation withstand
voltage test and the measurement of the insulation resistance.)

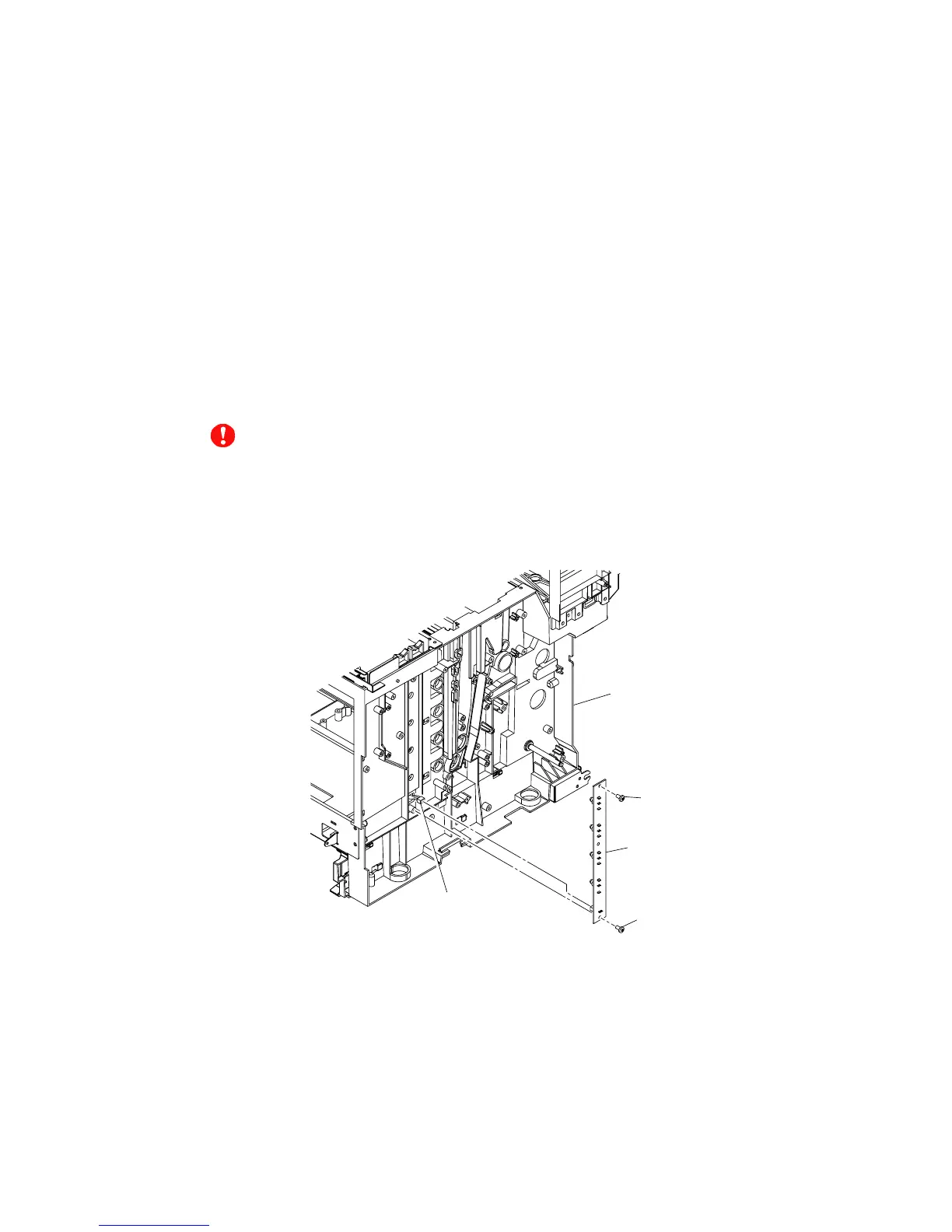

Fig. 5-86
BT3x8
BT3
x
6
Toner sensor PU (TPD)
Frame
Connecto
r

Brother MFC-9420CN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 2400 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	31 ppm
Print speed (color, normal quality, A4/US Letter)	8 ppm
Digital sender	No
Number of print cartridges	4
Scanner type	Flatbed scanner
Scanner features	Scan to: e-mail, image, OCR, file
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	31 cpm
Copy speed (color, normal quality, A4)	8 cpm
Faxing	Color faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Total input capacity	750 sheets
Maximum input capacity	250 sheets
Auto document feeder (ADF) input capacity	35 sheets
Maximum internal memory	576 MB
Bundled software	ScanSoft PaperPort Presto! PageManager
I/O ports	IEEE-1284 USB 2.0
Dimensions (WxDxH)	483.5 x 514 x 530 mm
Printer management	BRAdmin Professional, MIB-II
Networking features	10Base-T/100Base-TX
All-in-one functions	Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows 98(SE)/ Me/ NT WorkStation 4.0/ 2000 Professional/ XP Mac OS 9.1 - 9.2, Mac OS X 10.2.4+
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	1090 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Market positioning	Business
