Brother MFC-9420CN - Top Cover; Center Cover

Confidential
5-39
5.1.18 Top Cover
(1) Remove the four screws from the top cover.
(2) Release the two hooks to remove the top cover.

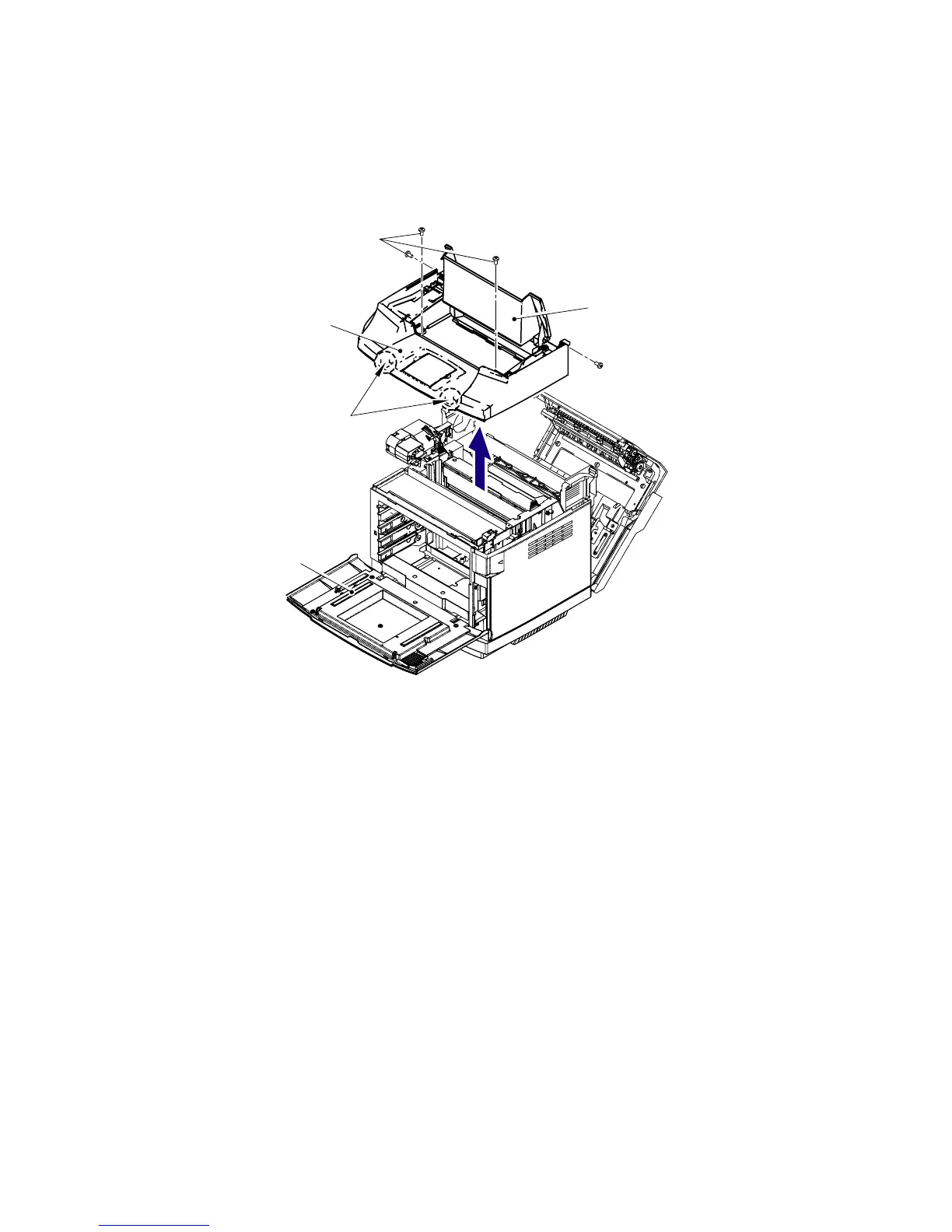

Fig. 5-62
Center cove
r
Screws
Top cove
r
Front cover
Hooks
