Brother MFC-9420CN Service Manual

8-3 Confidential
8.1.3 User-access to the Maintenance Mode
Basically, the maintenance-mode functions listed on the previous page should be accessed by
service personnel only. However, you can allow end users to access some of these under the
guidance of service personnel (e.g., by telephone).
The user-accessible functions (modes 06, 09, 10, 11, 12, 52, 53, 54, 80, 82 and 87) are shaded
in
the table given on the previous page. Function code 10 accesses the firmware switches, each of
which has eight selectors. You should not allow end users to access all of those selectors, but you
can allow them to access user-accessible selectors which are shaded
in the firmware switch tables
in Appendix 4.
The service personnel should instruct end users to follow the procedure given below.
(1) Press the Menu/Set, Black Start, Menu/Set, and
keys in this order.
TIP: For the FAX models equipped with numerical keypads, you may press the Menu/Set,
Black Start, and 0 keys instead in the same way as conventional models.
The "MAINTENANCE 06" appears on the LCD.
(2) Press the
key or key several times to display the desired maintenance code on the LCD.
Then press the Menu/Set key.
(3) To switch the machine back to the standby state, press the Stop/Exit key. When each of the
user-accessible functions is completed, the machine automatically returns to the standby
state.

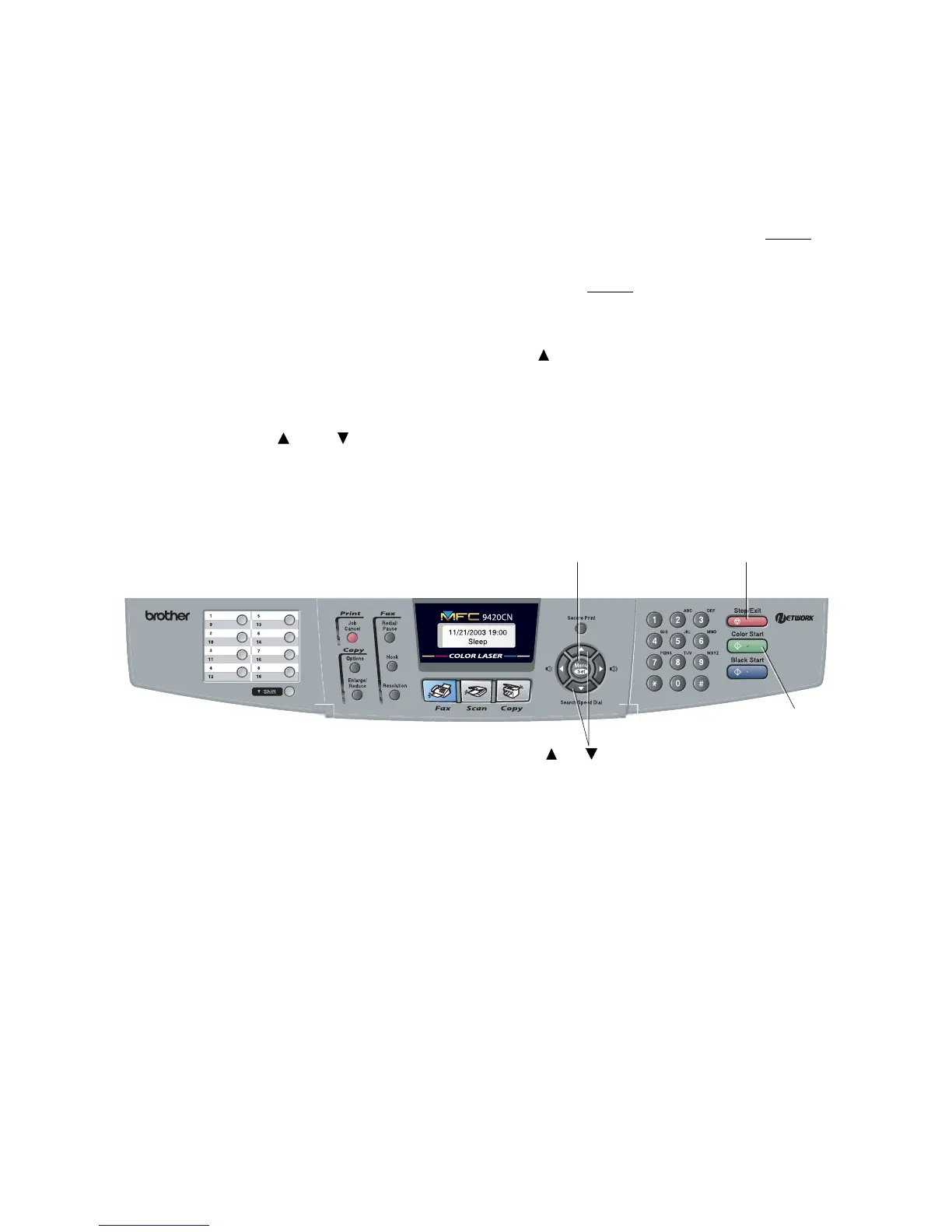

Fig. 8-1
Stop
/
Exit ke
y
Menu/Set ke
y
and
ke
y
s
Start ke
y

Brother MFC-9420CN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 2400 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	31 ppm
Print speed (color, normal quality, A4/US Letter)	8 ppm
Digital sender	No
Number of print cartridges	4
Scanner type	Flatbed scanner
Scanner features	Scan to: e-mail, image, OCR, file
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	31 cpm
Copy speed (color, normal quality, A4)	8 cpm
Faxing	Color faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Total input capacity	750 sheets
Maximum input capacity	250 sheets
Auto document feeder (ADF) input capacity	35 sheets
Maximum internal memory	576 MB
Bundled software	ScanSoft PaperPort Presto! PageManager
I/O ports	IEEE-1284 USB 2.0
Dimensions (WxDxH)	483.5 x 514 x 530 mm
Printer management	BRAdmin Professional, MIB-II
Networking features	10Base-T/100Base-TX
All-in-one functions	Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows 98(SE)/ Me/ NT WorkStation 4.0/ 2000 Professional/ XP Mac OS 9.1 - 9.2, Mac OS X 10.2.4+
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	1090 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Market positioning	Business
