5.1.58 Left Toner Guide PU
(1) Remove the setscrew (BT4x8, 1 piece and BT3x6, 2 pieces) of the left toner guide PU.
(2) Remove the left toner guide PU from the frame.

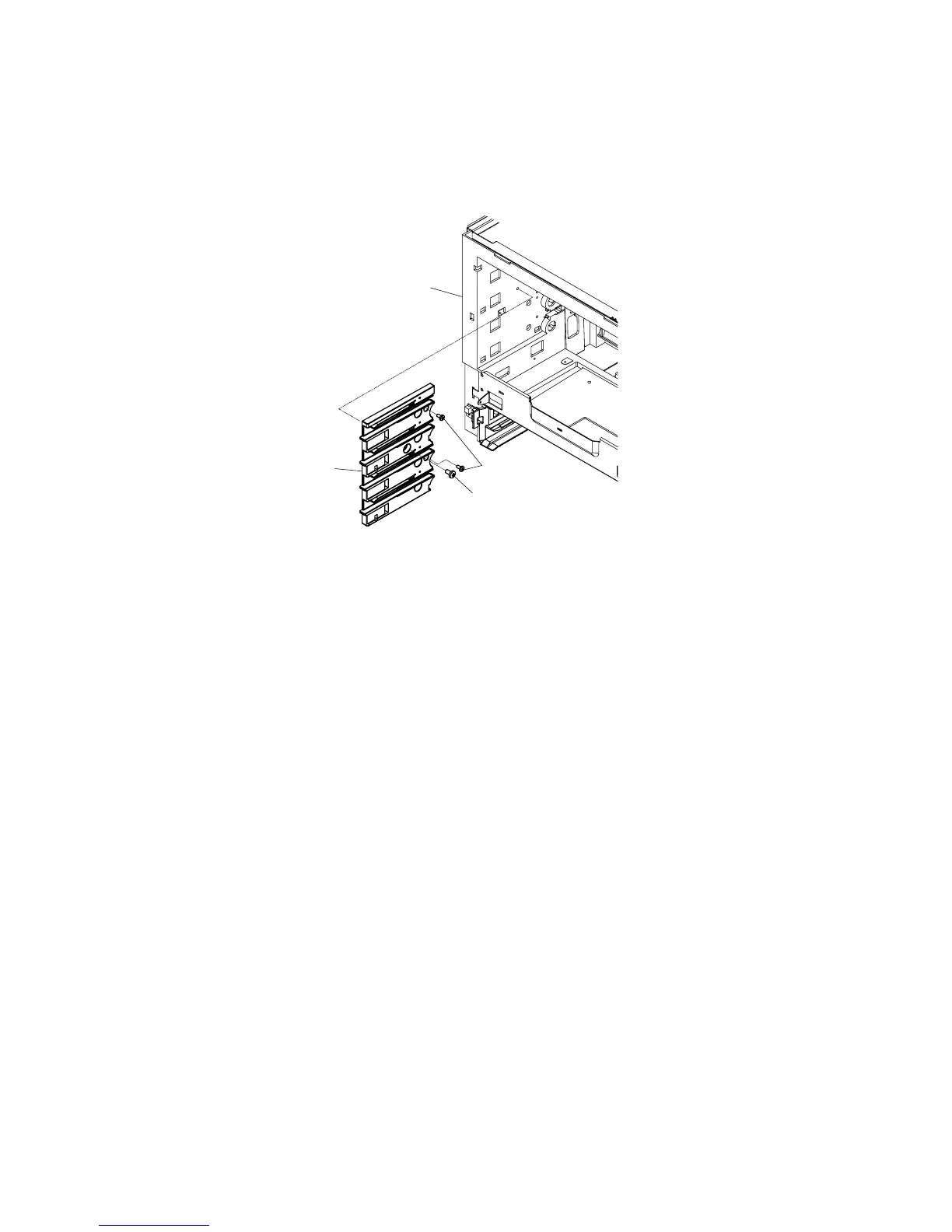

Fig. 5-105
Frame
Left toner guide PU
BT3
x
6
BT4
x
8
