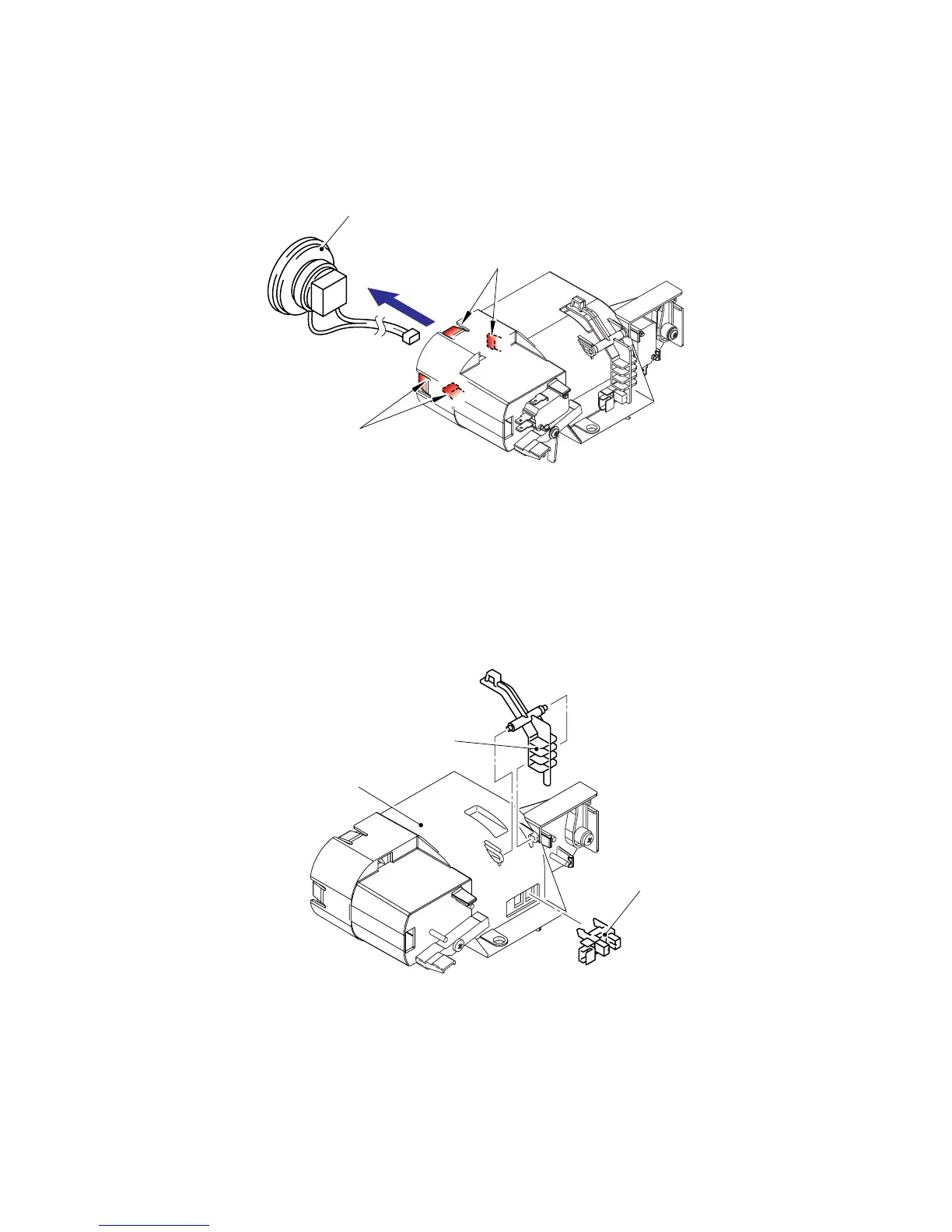

5.1.48 Speaker
(1) Release the four hooks to remove the speaker.
Fig. 5-95
5.1.49 Scanner Door Sensor
(1) Remove the scanner door sensor actuator from the power supply fan duct PU.
(2) Remove the scanner door sensor from the power supply fan duct PU.
Fig. 5-96
Scanner door sensor actuato
r
Power supply fan duct PU
Scanner door senso
r
Hooks
Hooks
Speake
r
