5.1.19 Center Cover

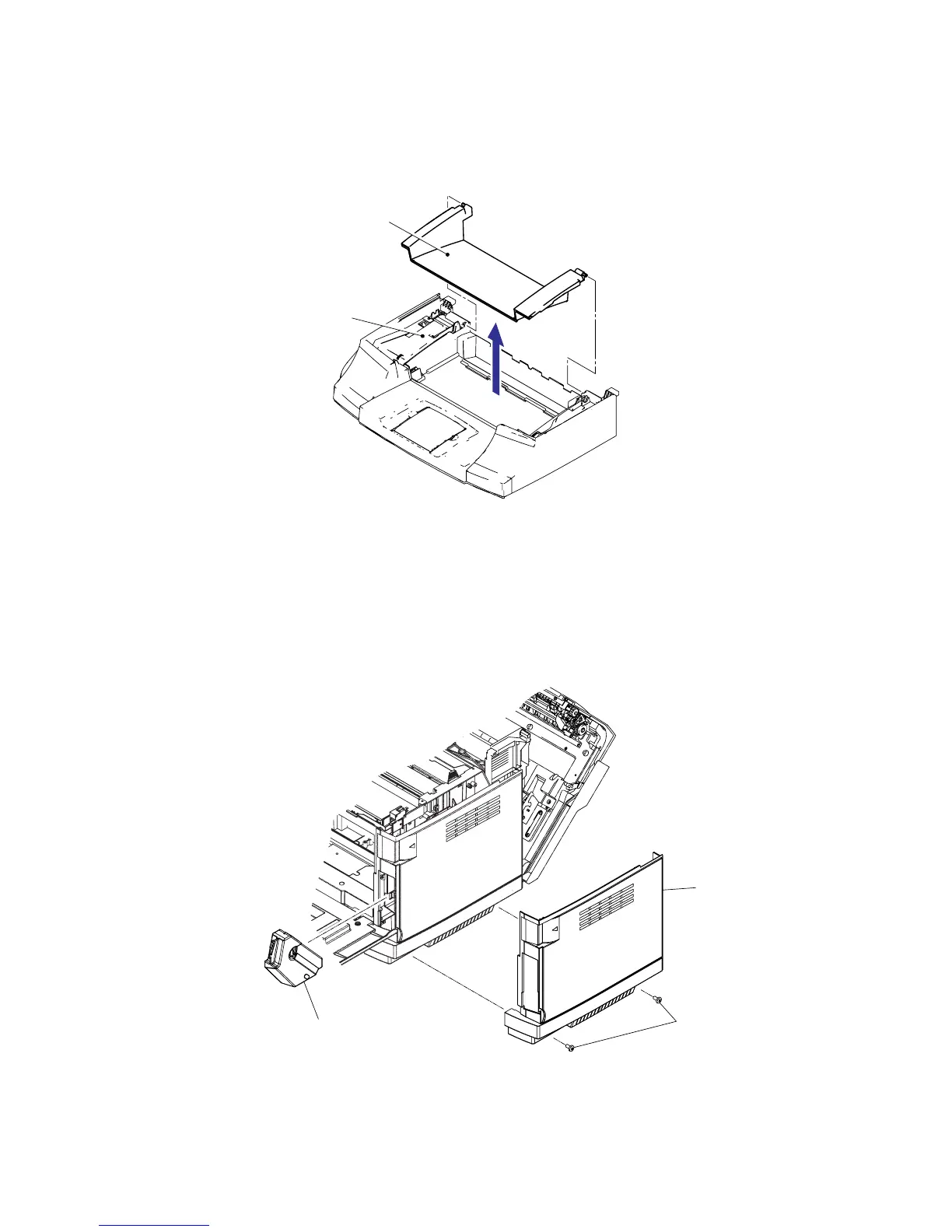

(1) Remove the center cover from the top cover.
Fig. 5-63
5.1.20 Right Side Cover PU
(1) Remove the waste toner pack PU.
(2) Remove the setscrew (BT4x10, 2 pieces) of right side cover PU.
(3) Remove the right side cover PU from the machine.
Fig. 5-64
Right side cover PU
BT4x10
Waste toner pack PU
Center cove
r
Top cover
