Brother MFC-9420CN - Scanner Unit

Confidential
5-28
5.1.8 Scanner Unit

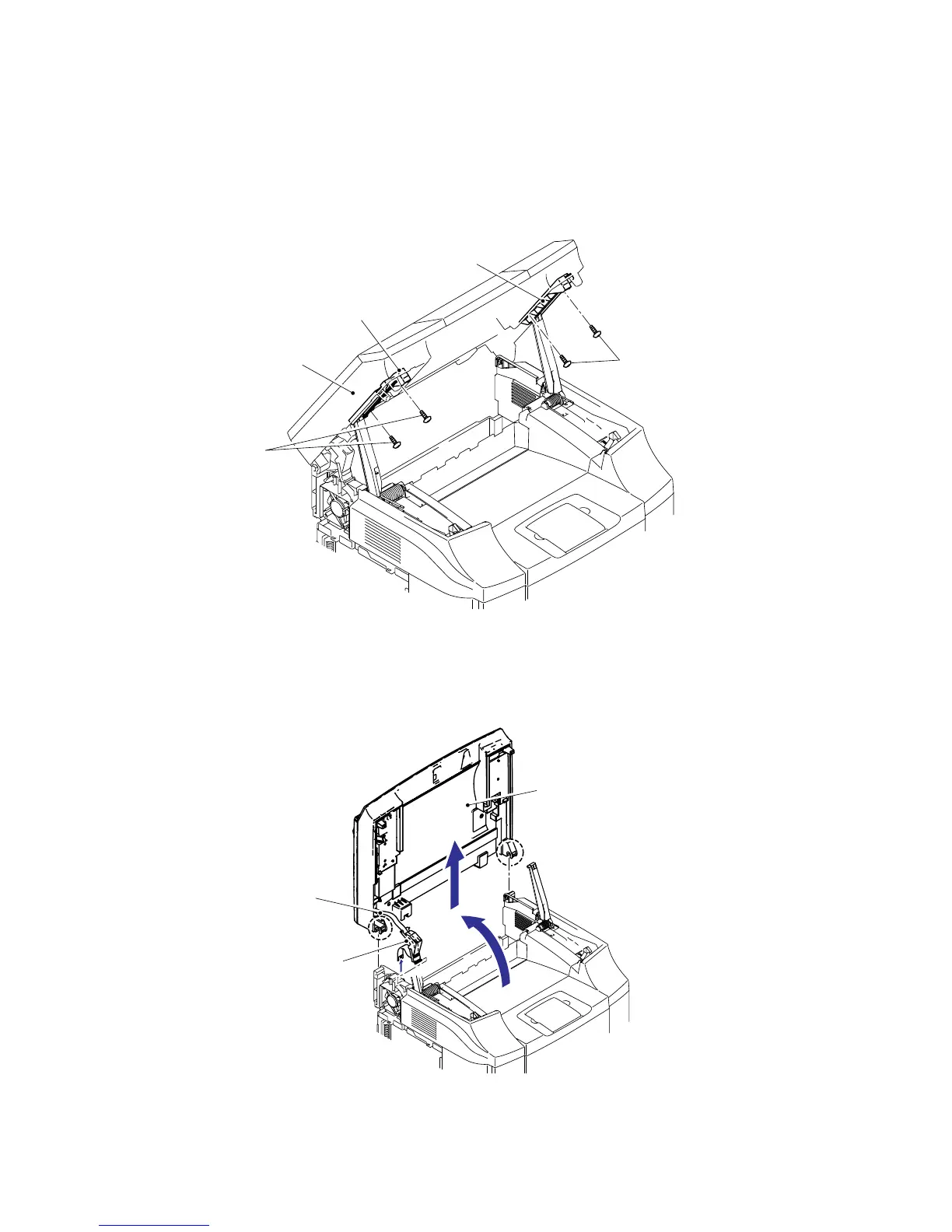

(1) Open the scanner unit.
(2) Remove the two screws from the scanner slider L.
(3) Remove the two screws from the scanner slider R.
Fig. 5-41
(4) Remove the cable cover to remove the CIS flat cable from the cable cover.
(5) Put up the scanner unit at right angles to remove it.
Fig. 5-42
Screws
Screws
Scanner unit
Scanne
r
slider L
Scanne
r
slider R
Scanner unit
Cable cove
r
CIS flat cable
