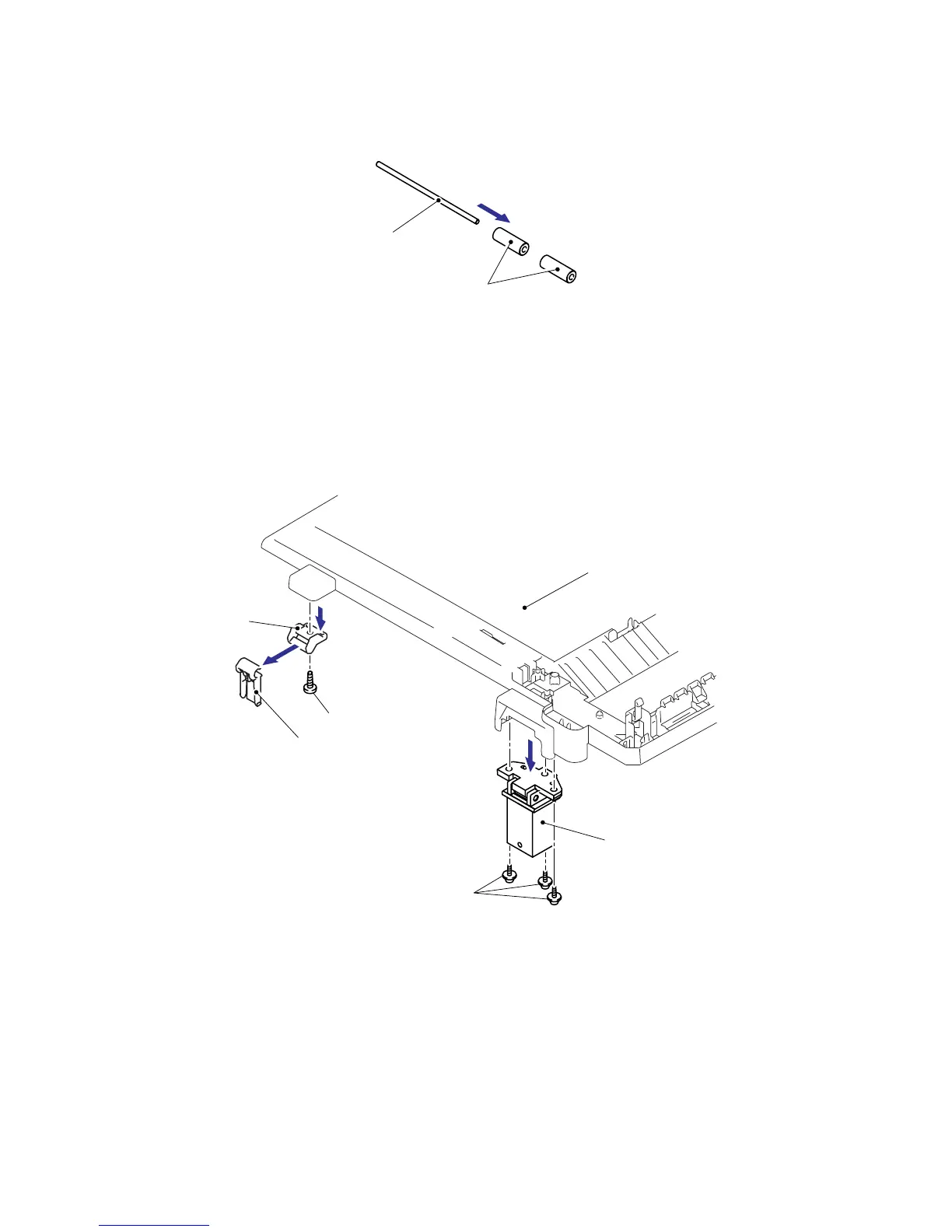

(39) Remove the two pressure rollers from the pressure roller shaft.
Fig. 5-39
(40) Remove the three cup B M3x10 taptite screws to remove the hinge ASSY L.
(41) Remove the hinge from the hinge arm.
(42) Remove the one bind B M4x12 taptite screw to remove the hinge arm.
Fig. 5-40
Document cover sub ASS
Y
Hinge ASSY L
Taptite, cup B M3
x
10
Hinge arm
Hinge
Taptite, bind B M4x12
Pressure roller shaft
Pressure rolle
r
s
1
2
3
