Brother MFC-9420CN - Page 115

Confidential
5-26

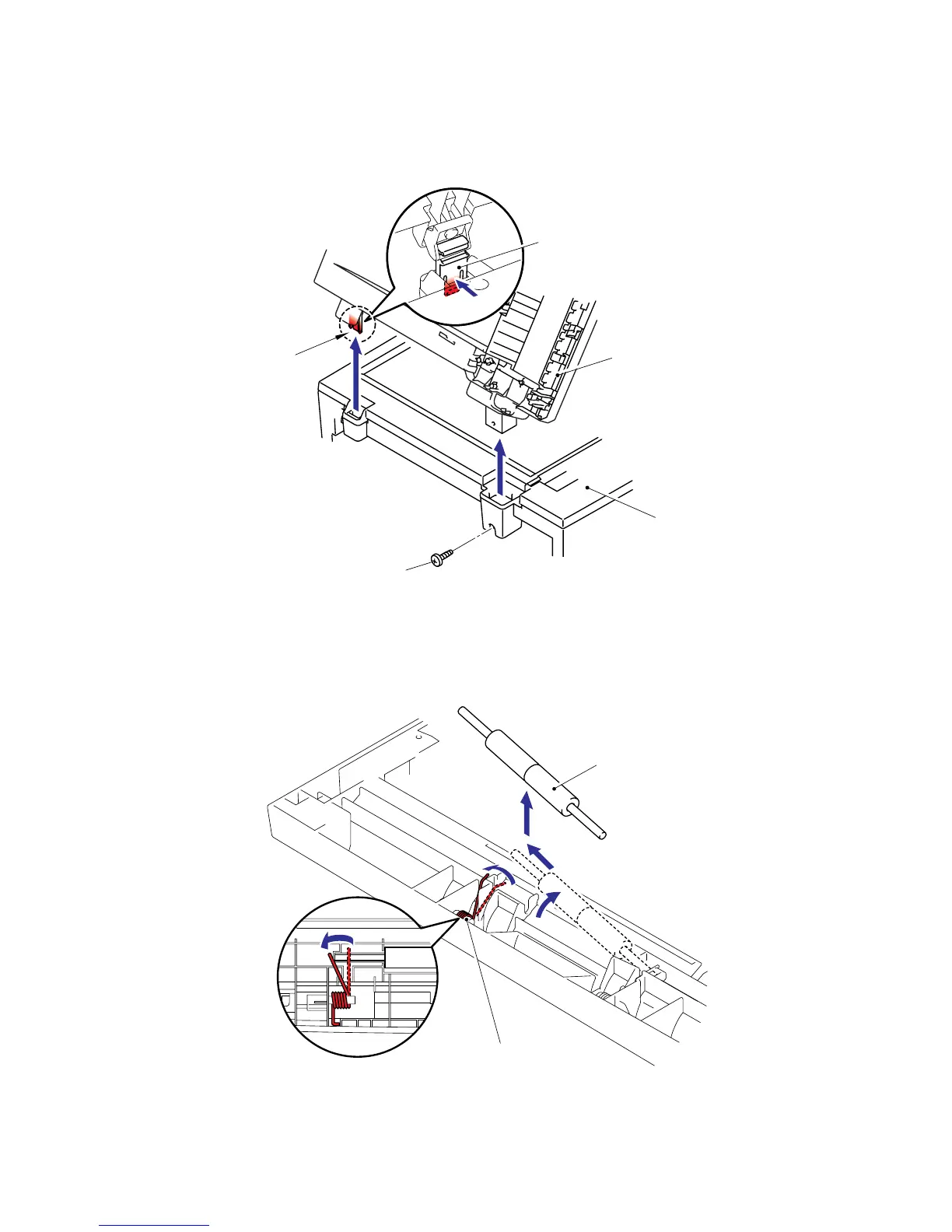

(35) Remove the one bind B M4x12 taptite screw from the document cover sub ASSY.
(36) Open the ADF unit and then release the hook to remove the document cover ASSY.
Fig. 5-37
(37) Move the spring as shown in the figure below.
(38) Remove the pressure roller ASSY.
Fig. 5-38
Document cover ASSY
ADF unit
Hook
Pressure rolle
r
ASS
Y
Taptite, bind B M4x12
Spring
Hinge
