Confidential
5-42

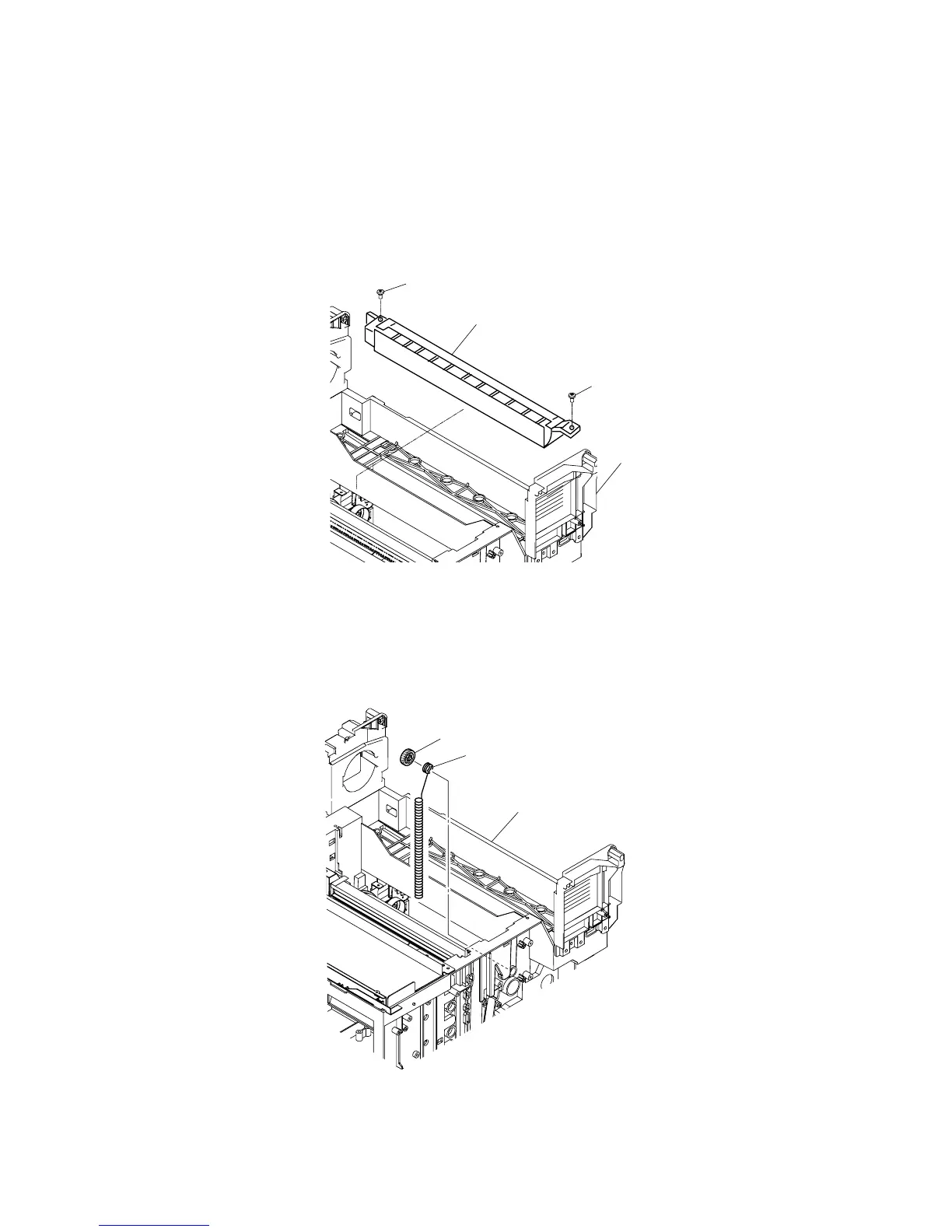

5.1.23 Waste Toner Auger PU
(1) Remove the setscrew (BT3x8, 2 pieces) of the waste toner auger PU.
(2) Remove the waste toner auger PU from the frame.
NOTE:
• In this instance, do not cause the waste toner fall on the floor.
• If the installation part is stained, clean it off with the vacuum cleaner that is for the toner
only or with cloth.
Fig. 5-67
5.1.24 Waste Toner Agitator PU
(1) Remove the coupling gear from the inside of the frame.
(2) Pull out the waste toner agitator PU.
Fig. 5-68
BT3x8
Waste toner auger PU
BT3x8
Frame
Waste toner agitator PU
Coupling gea
