Brother MFC-9420CN - Fuser Exit Actuator PU; Paper Sensor (PT2)

Confidential
5-74

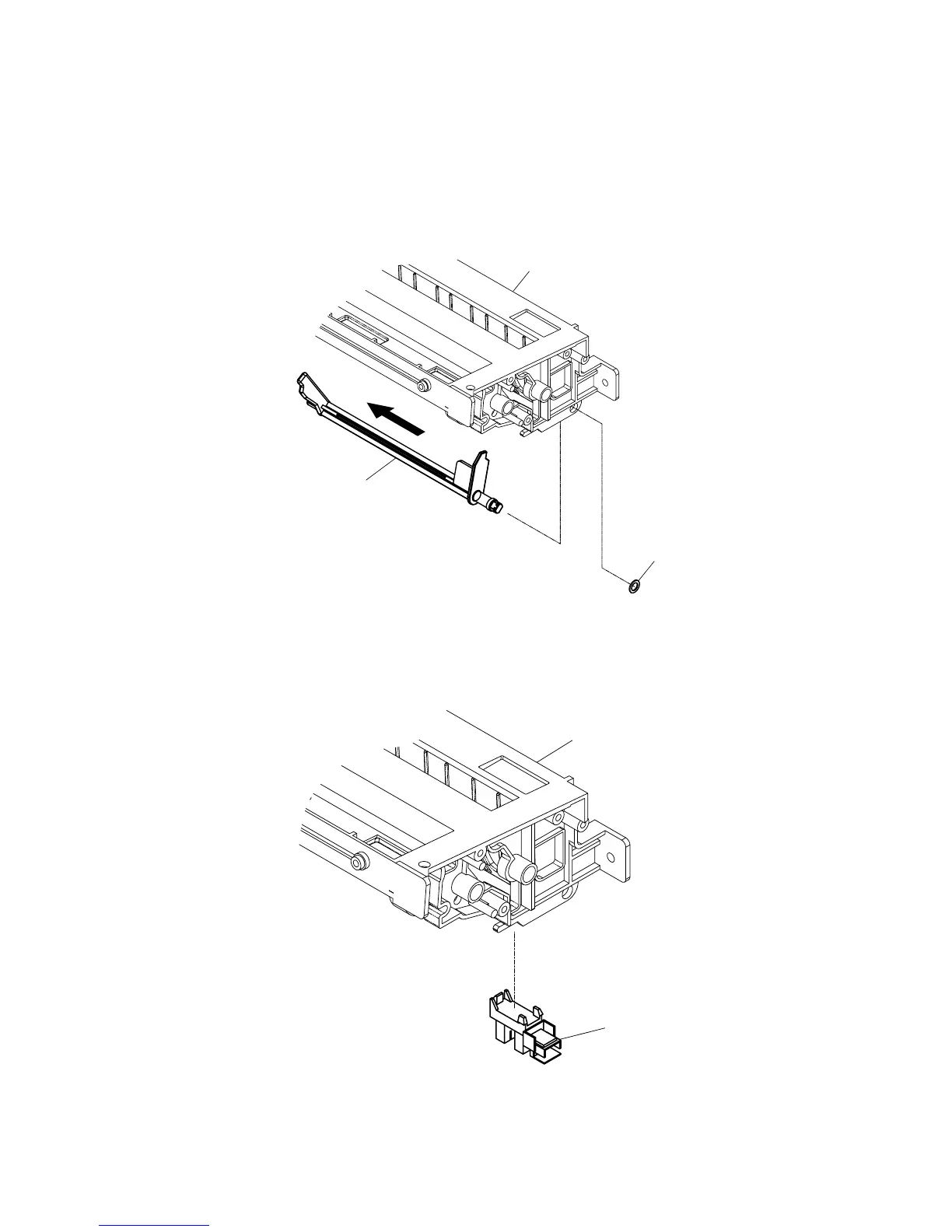

5.1.67 Fuser Exit Actuator PU
(1) Remove the washer.
(2) Slide the fuser exit actuator PU to the arrow direction.
(3) Remove the fuser exit actuator PU from the exit guide ASSY PU.
Fig. 5-115
5.1.68 Paper Sensor (PT2)
(1) Remove the paper sensor (PT2) from the exit guide ASSY PU.
Fig. 5-116
Washer
Fuser exit actuator PU
Exit guide
A
SS
Y
PU
Exit guide
A
SS
Y
PU
Paper sensor (PT2)
