6.3 ADJUSTMENT OF THE GUIDE B POSITION
OF TOP FUSE COVER FU
(1) Install the Top Fuse Cover FU with the setscrews (ST3x6, 2 pieces).
(2) Loosen the Guide B setscrews (BT3x8, 2 pieces) to make the Guide B attached to the
Separation Guide.
(3) Tighten the setscrews (BT3x8, 2 pieces) to clamp the Guide B.
(4) Put the protective seal on the head of setscrews.
ST3x6
BT3x8
Protective seal
Guide B
Separation Guide

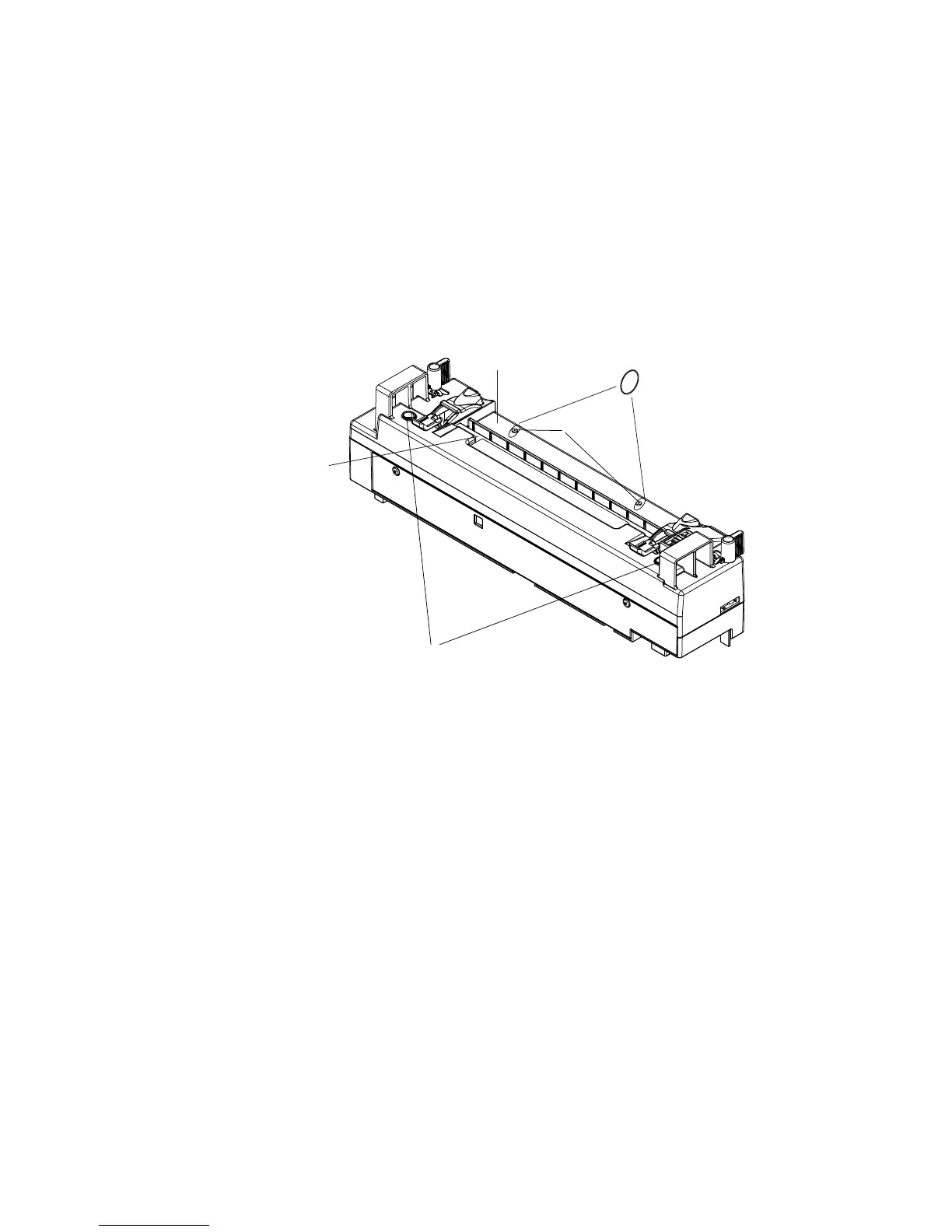

Fig. 6-1
