8.1.4.12 Fine Adjustment of Scan Start/End Positions (Function code 54)
 Function
This function is to adjust the scan start/end positions.
 Operating Procedure
(1) Press the 5 and 4 keys in this order in the initial stage of the maintenance mode.
The “SCAN START ADJ.” will appear on the LCD.
(2) The “1. ADF 2. FB” will appear.
Select one of them that you want to adjust the start position. If you want to adjust the
start position of the ADF, press 1 key, and if you want to adjust that of the FB unit,
press 2 key.
(3) Press the 1 or 2 key to display the present compensation level for the start position.
Compensation levels can be adjusted in 11 steps from +5 to –5 (mm).
(4) Press the
key to increase compensation levels, and the key to lower them.
Press the Stop/Exit key, and the machine returns to the initial state of the maintenance
mode without adjusting compensation levels.
(5) Press the Menu/Set key.
The “ACCEPTED” will appear on the LCD. One second later, the machine indicates
“1. ADF 2. FB” on the LCD.

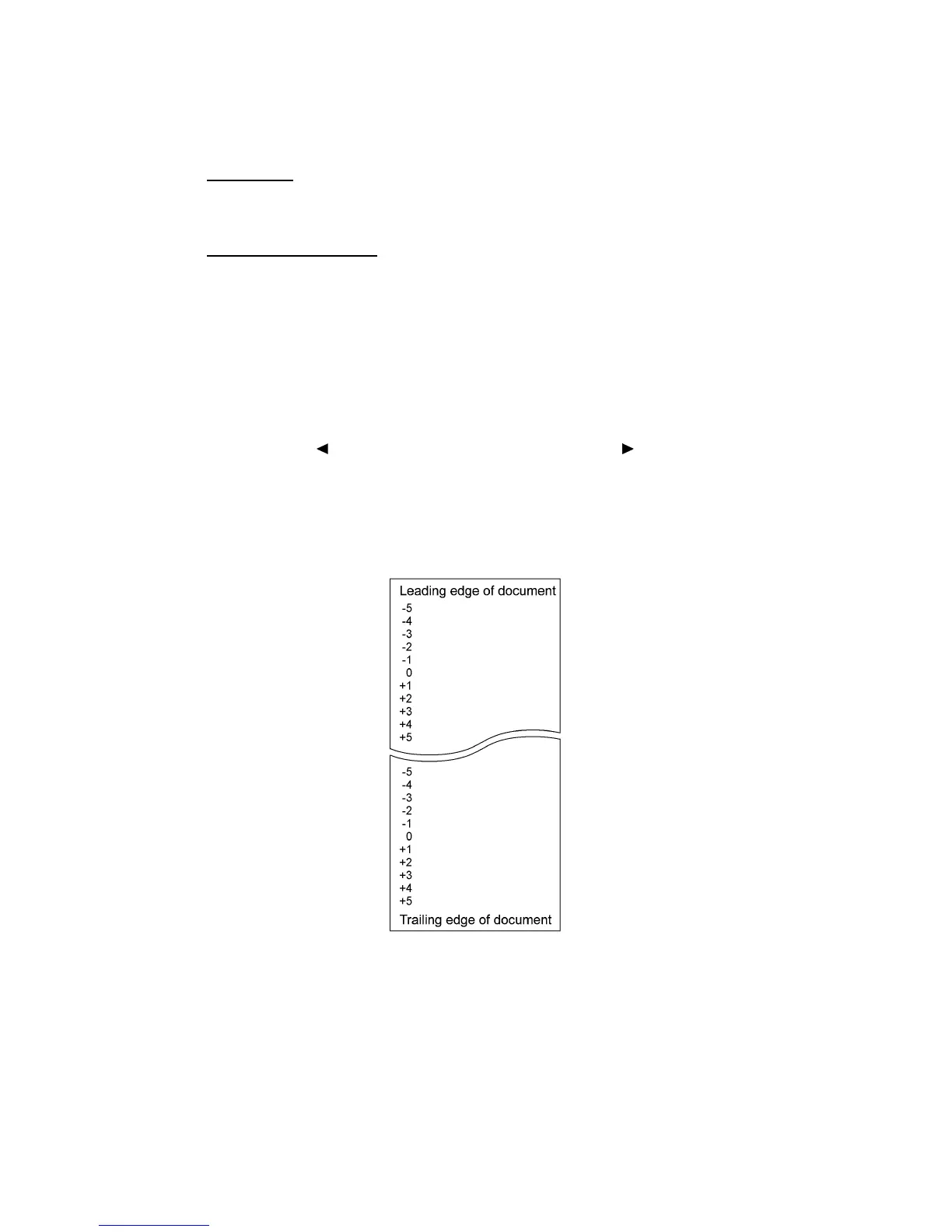

Fig. 8-9
