6.4.5 Replacement of Paper Feed Roller and Separator Pad (120K KIT)
<Criterion of Replacement>
Since the paper feed roller and separator pad are defined as periodic replacement parts as per
Table 6-1, they should be replaced when the feeding jam (17. MEDIA JAM FEED) occurs. The
following message appears in LCD of the control panel.
Replace 120K Kit
NOTE: At the same time, replacement of the paper feed roller, the cleaning roller, the separator
pad and the transfer unit is strongly recommended.
<Work Procedures>
Sequence of Disassembling
(1) Pull out the paper tray.
(2) Open the front cover and back cover.
(3) Remove the screw to remove the top side R.

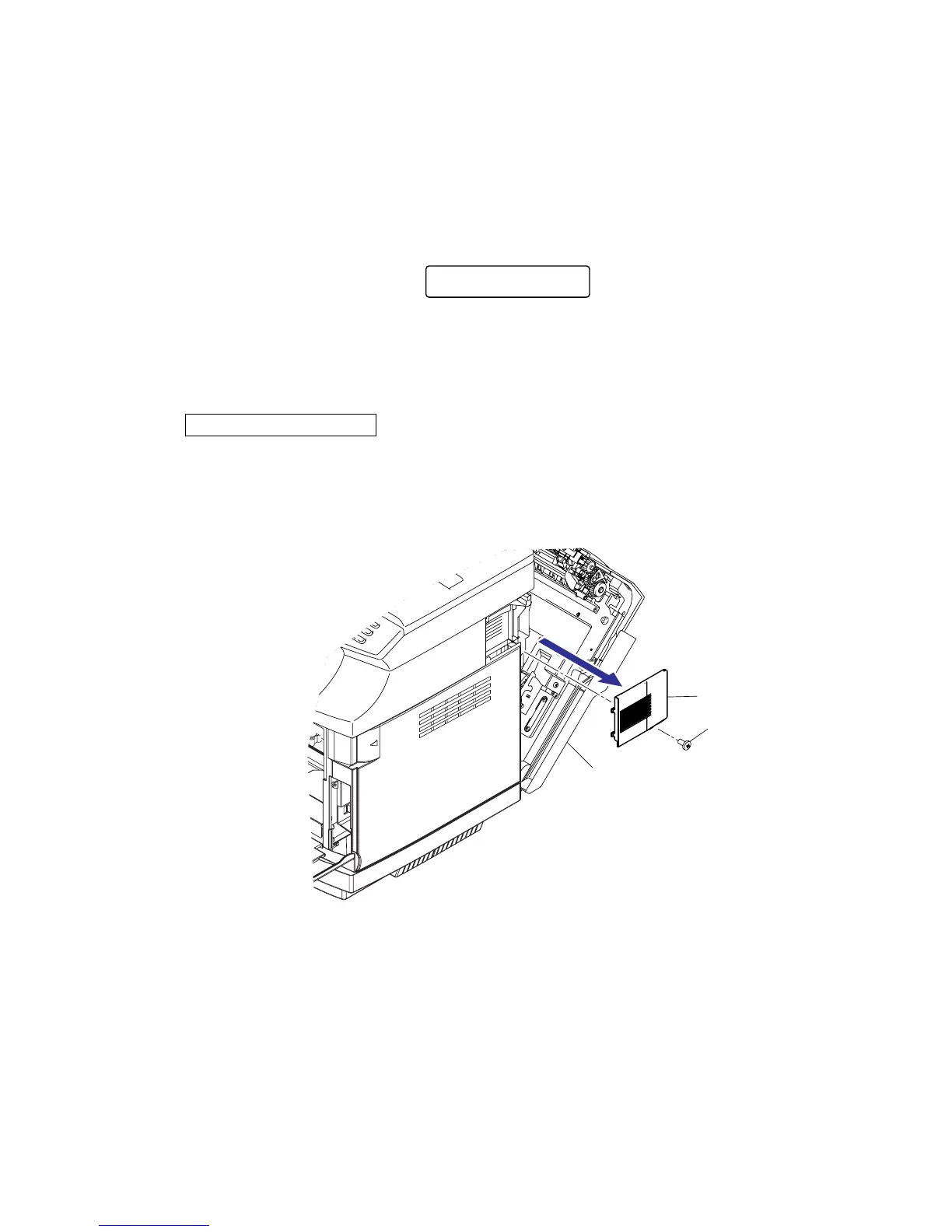

Fig. 6-22
Screw
Top side R
Back cover
