Brother MFC-9420CN - TR Cam Clutch; Registration Clutch PU

Confidential
5-47

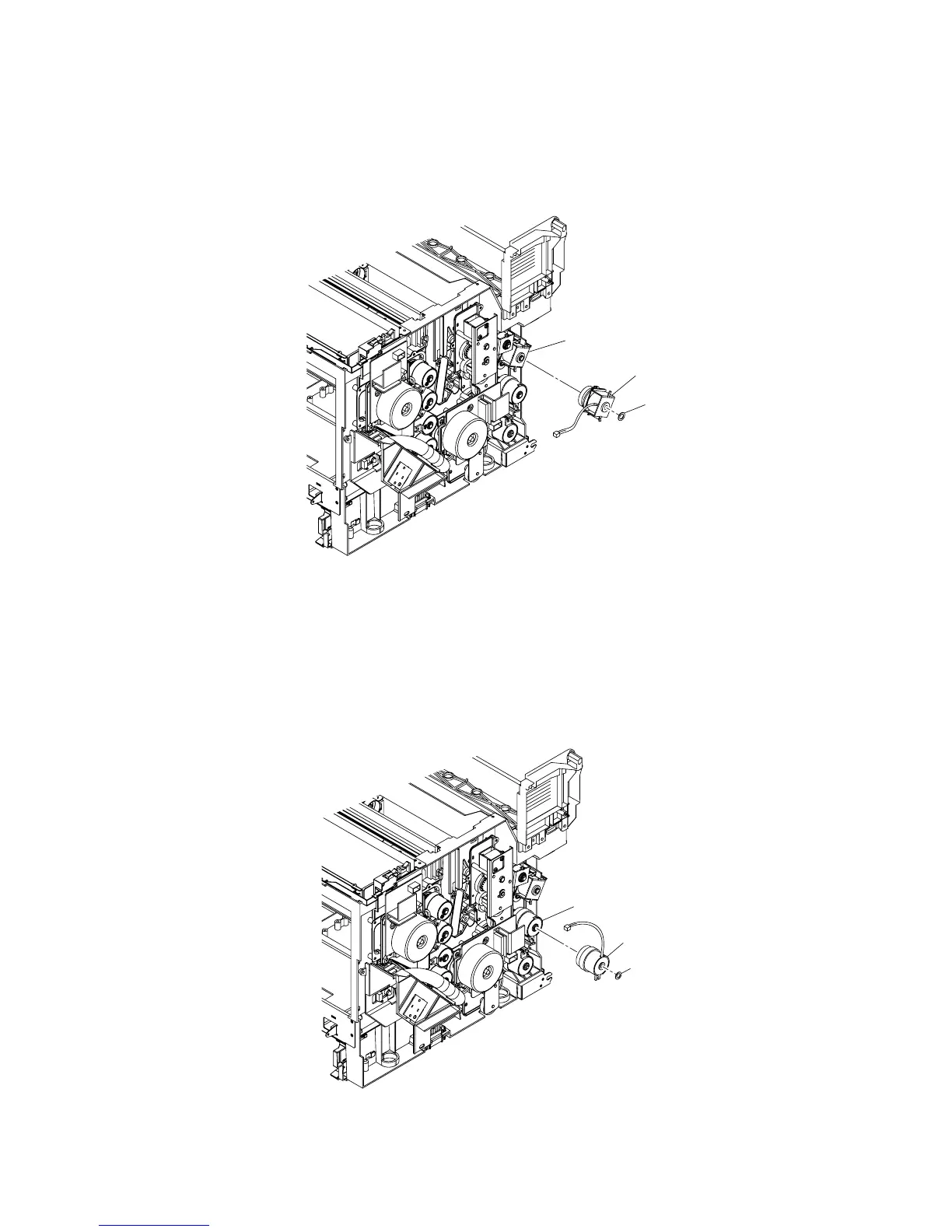

5.1.31 TR Cam Clutch
(1) Remove the washer fixing the TR cam clutch.
(2) Remove the TR cam clutch from the shaft.
Fig. 5-76
NOTE: When reassembling the motors, ensure to secure each of them onto the correct position
since they are exactly alike. If they cannot be identified, check their parts numbers.
5.1.32 Registration Clutch PU
(1) Remove the washer fixing the registration clutch PU to the shaft.
(2) Remove the registration clutch PU from the shaft.
Fig. 5-77
Washe
r
TR cam clutch
Shaft
Shaft
Washe
r
Registration clutch PU
