Brother MFC-9420CN - Paper Guide (D) PU; Paper Feed Roller; Separator Pad

Confidential
5-80
5.1.75 Paper Guide (D) PU
(1) Remove the setscrew (BT3x8, 2 pieces) of the paper guide (D) PU.
(2) Remove the paper guide (D) PU from the frame.

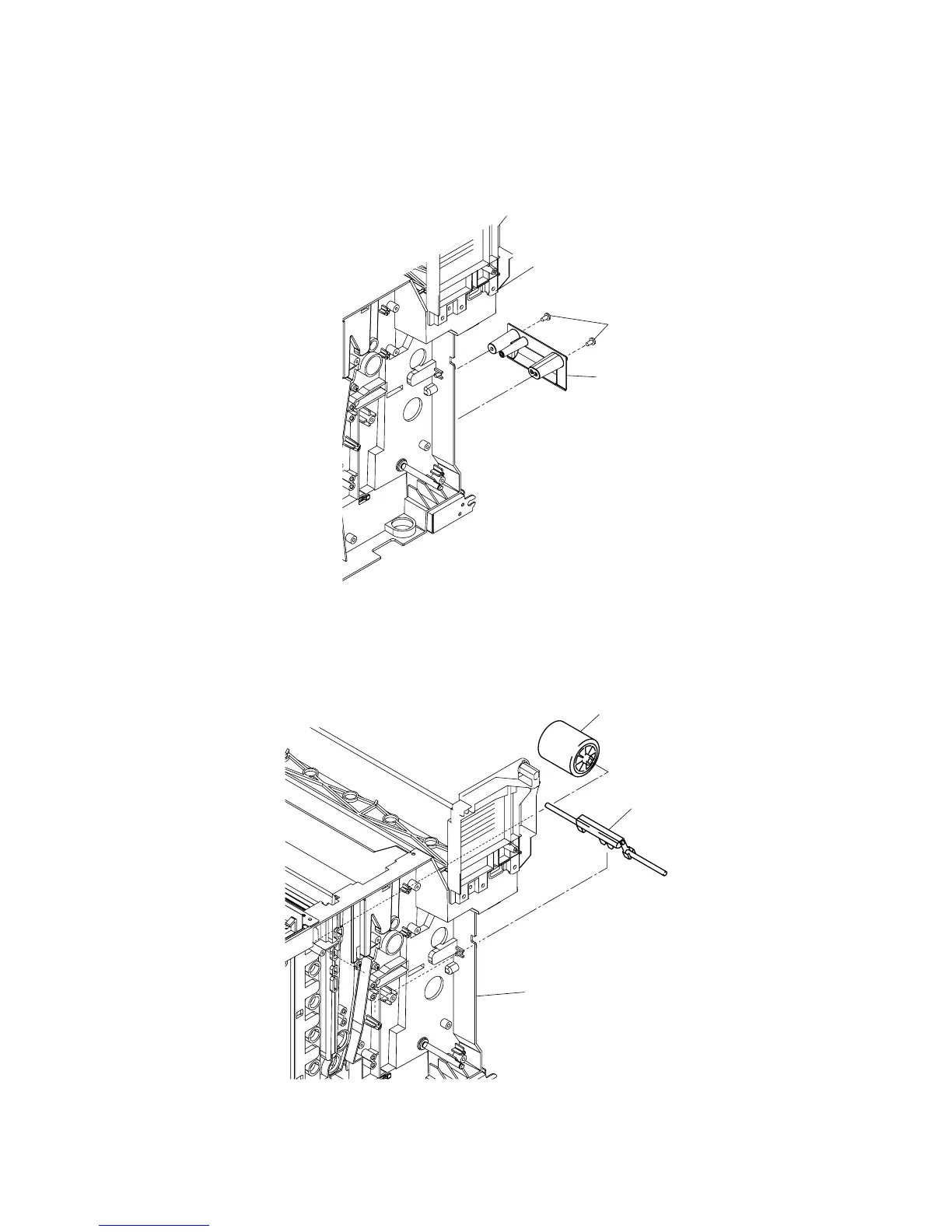

Fig. 5-124
5.1.76 Paper Feed Roller / Separator Pad
(1) Sliding the paper feed roller along the shaft, remove it from the shaft.
(2) Pull out the separator pad from the frame.
Fig. 5-125
Frame
Paper guide (D) PU
BT3x8
Separator pad
Paper feed rolle
r
Frame
