5.1.74 Paper Guide (C) PU / Paper Sensor (PT1, PEU) / OHP Sensor PU / Tray Empty Actuator
PU
(1) Disconnect the connector connecting to the paper sensor (PT1).
(2) Remove the setscrew (BT3x8, 2 pieces) of the paper guide (C) PU.
(3) Disconnect the connector connecting to each sensor of the paper guide (C) PU.
(4) Remove the paper guide (C) PU from the frame.
(5) Remove the paper sensor (PT1) from the paper guide (C) PU.
(6) Remove the setscrew (BT3x8, 2 pieces) fixing the OHP sensor PU.
(7) Remove the OHP sensor PU (Board) from the paper guide (C) PU.
(8) Remove the tray empty actuator PU from the paper guide (C) PU.
(9) Remove the harness from the paper sensor (PEU).
(10) Remove the paper sensor (PEU) from the paper guide (C) PU.

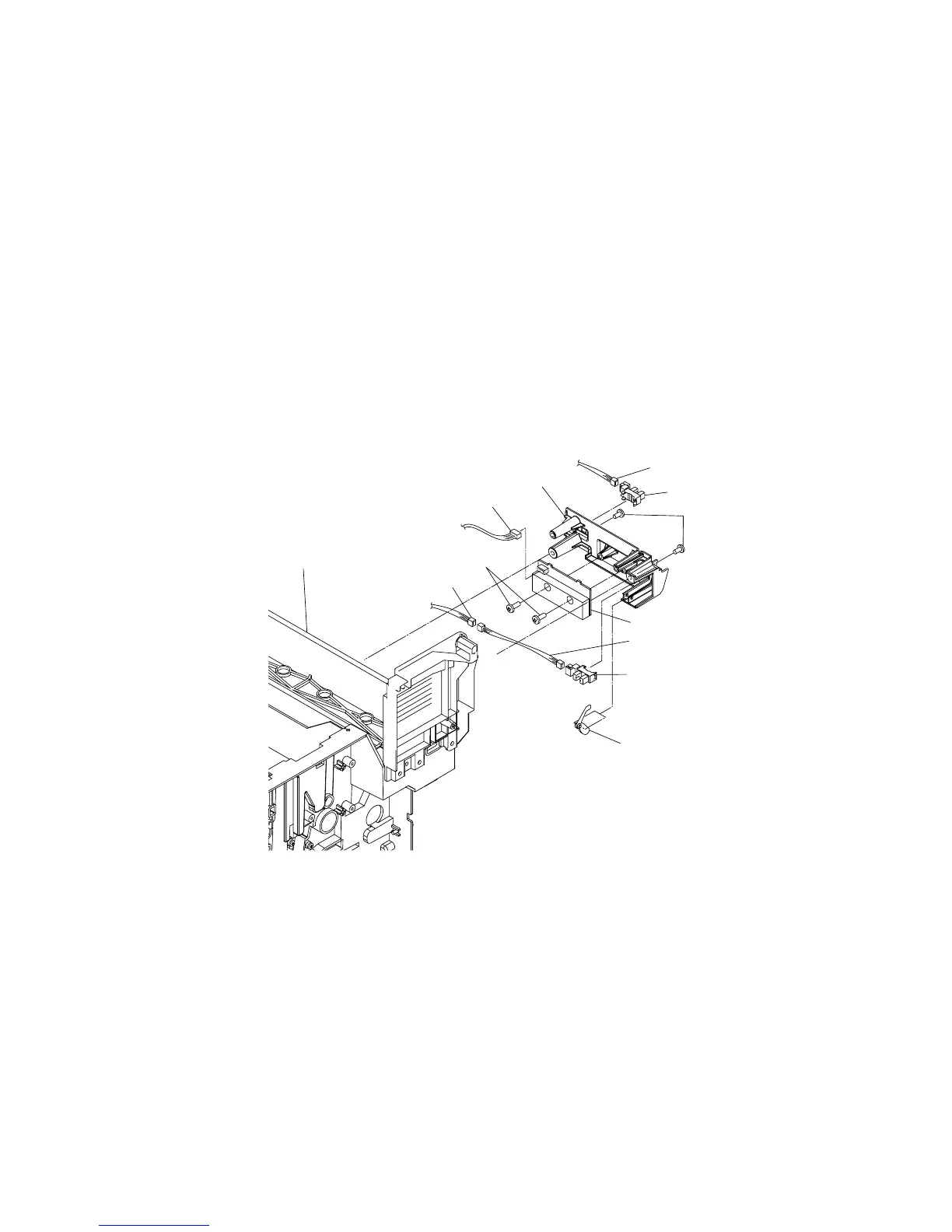

Fig. 5-123
BT3x8
Paper sensor (PT1)
Paper guide (C) PU
Frame
BT3x8
OHP sensor PU
Tray empty actuator PU
Paper sensor (PEU)
Harness
Connecto
r
Connecto
r
Connecto
r
