Brother MFC-9420CN - IS Lock Lever ASSY; Tray (TP)

Confidential
5-30

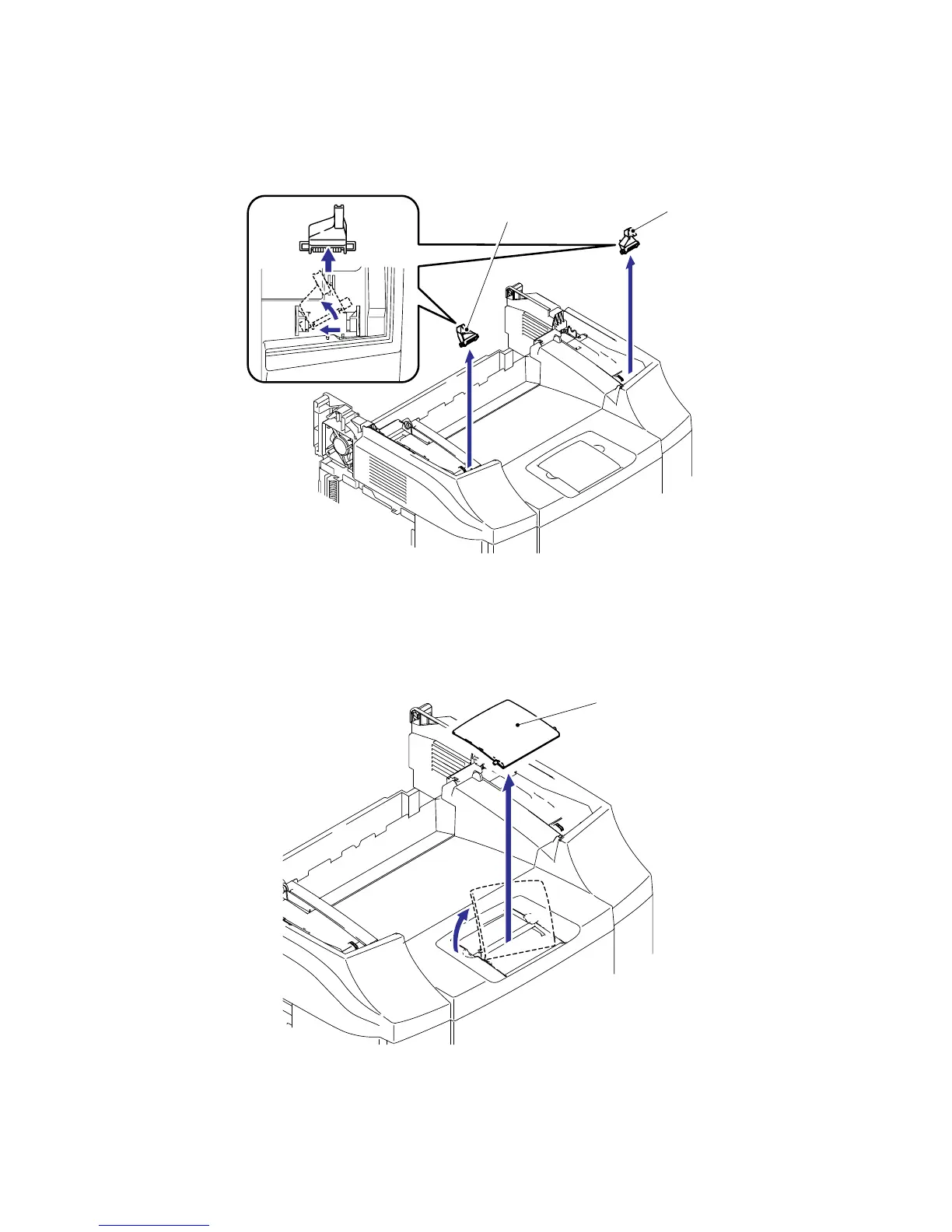

5.1.10 IS Lock Lever ASSY
(1) Remove the IS lock lever ASSY as shown in the figure below.
Fig. 5-45
5.1.11 Tray (TP)
(1) Remove the tray (TP) from the top cover.
Fig. 5-46
IS lock lever ASS
Y
IS lock lever ASS
Y
Tray (TP)
1
2
3
