Brother MFC-9420CN - Page 104

Confidential
5-15

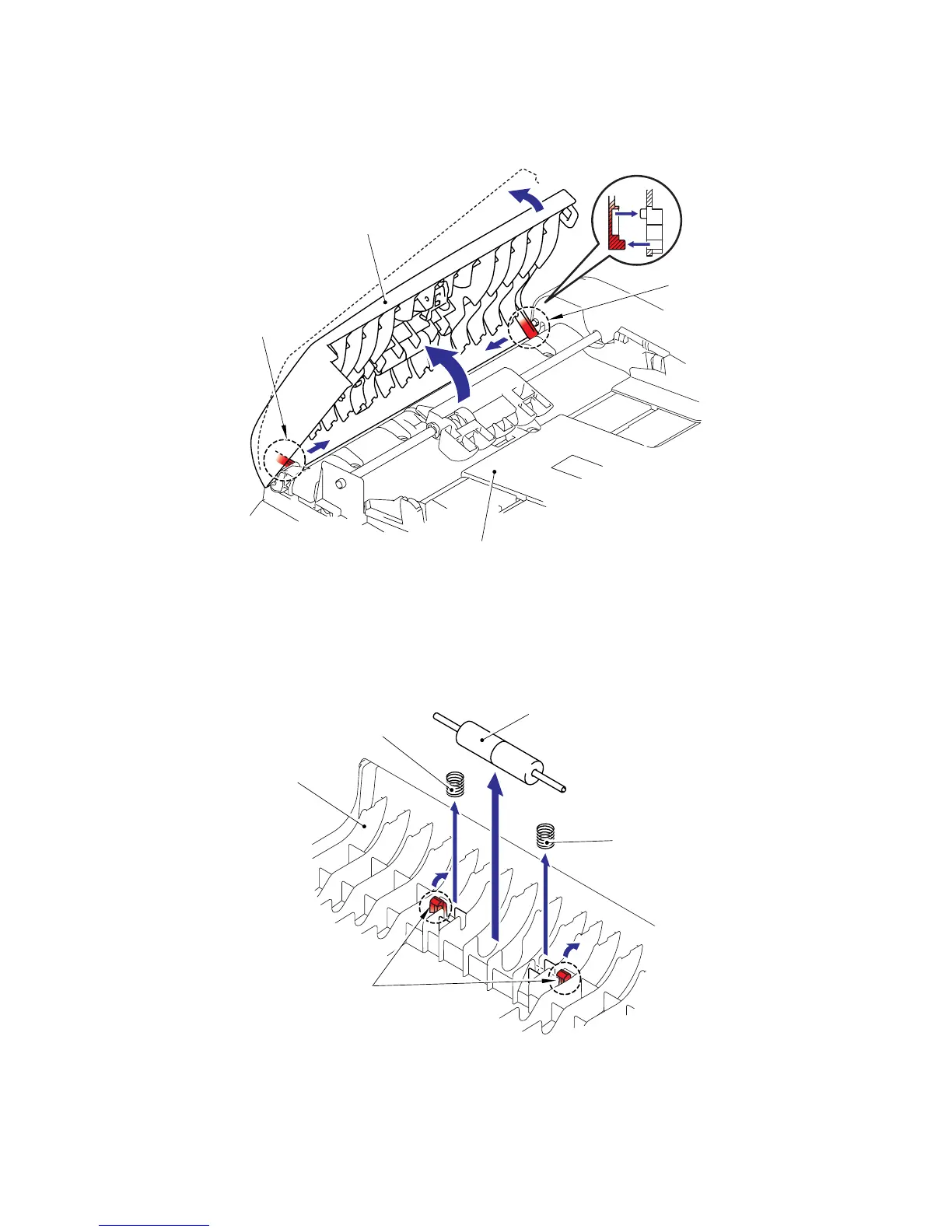

(4) Release the two pins and remove the ADF cover.
Fig. 5-14
(5) Release the two hooks, and then remove the pressure roller ASSY.
(6) Remove the two LF springs from the ADF cover.
Fig. 5-15
Pressure roller
A
SS
Y
LF spring
LF spring
A
DF cove
r
Hooks
1
3
2
3
Pin
Pin
A
DF cove
r
Scanner unit
1
