6-7 Confidential

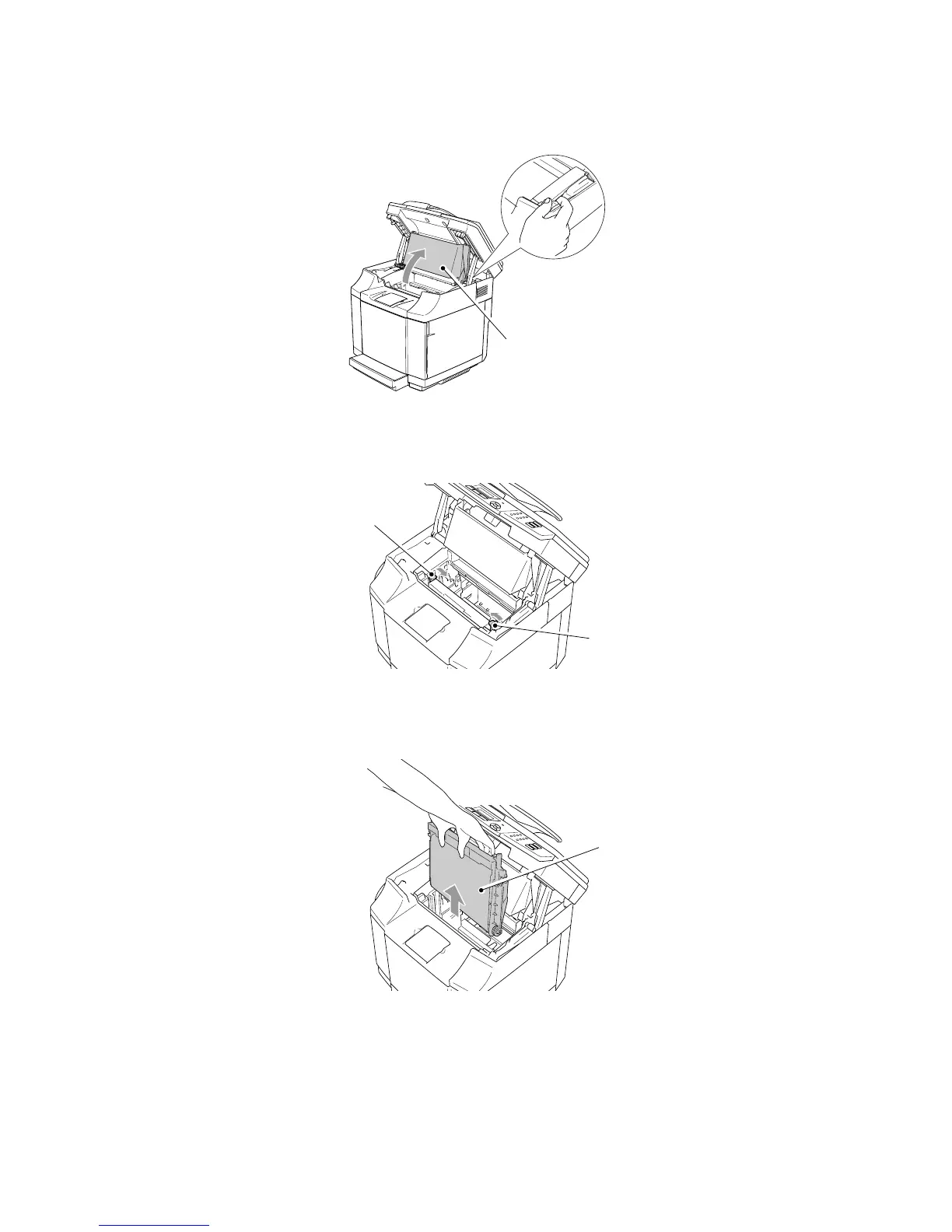

(3) Open the center cover.
Fig. 6-2
(4) To release the lock, push the green belt cartridge lock levers on both sides inwards.
Fig. 6-3
(5) Remove the OPC belt cartridge from the machine.
Fig. 6-4
Center cover
OPC belt cartridge
Belt cartridge lock levers
Belt cartridge lock levers
