<Structure of the OPC Belt>
The OPC belt consists of a surface layer having a photoconductor (OPC) of organic material,
the inner layer of an insulator material (PET / Mylar) and an aluminum deposit layer in between.

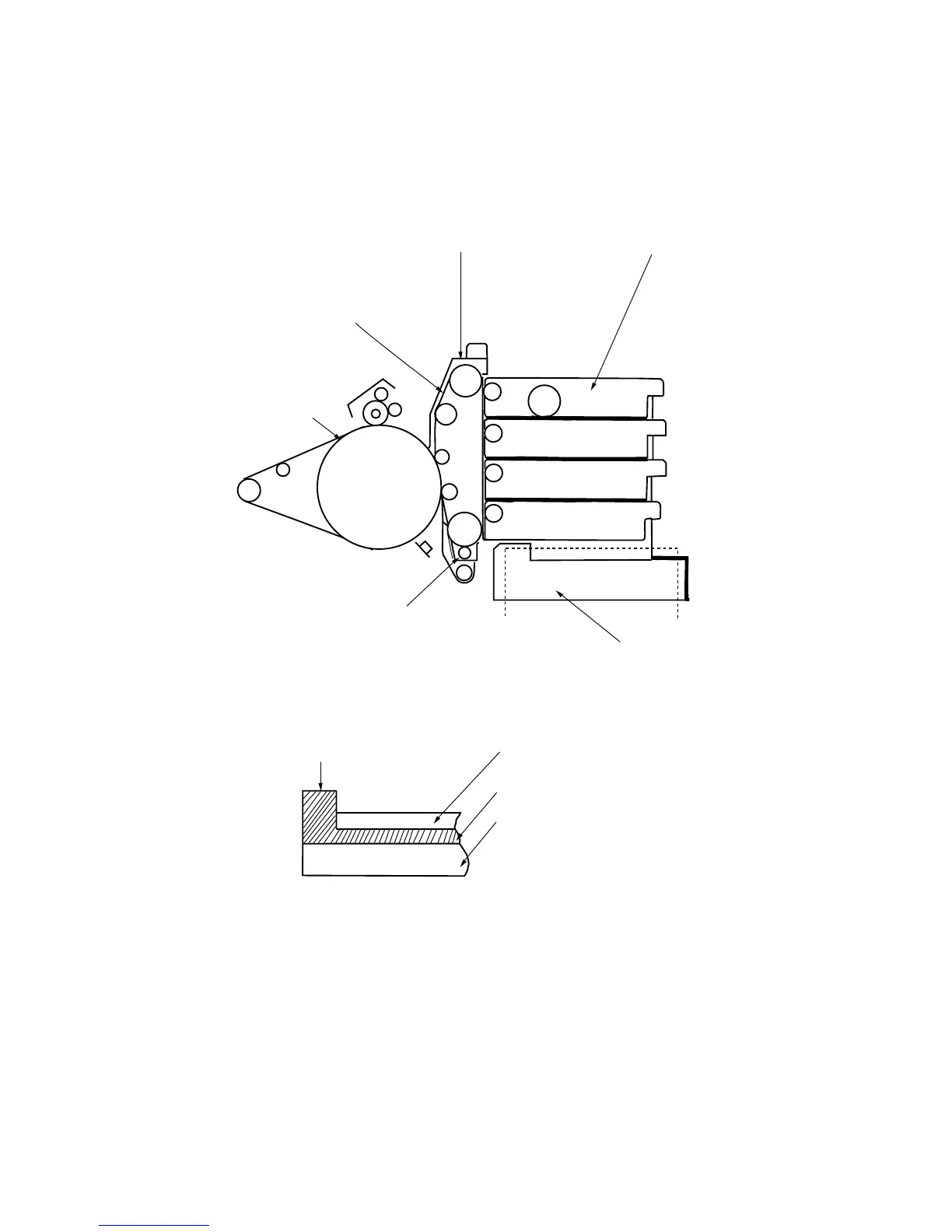

The OPC belt is located as shown in Fig.3-6 as the main part of the print system.
Belt Cartridge
Laser Assy
Transfer Belt
Toner Cartridge
OPC Belt
Charger Roller
Fig. 3-6
Photoconductor(OPC)
Aluminum Deposit Layer
Insulator Material
Electrode
Fig. 3-7
