2-2 User Manual
The rear of the Console (Figure 2-2) contains the power switch, one USB port, one Ethernet port, a
software reset button, an argon gas inlet, a Vent Valve, and an Argon Shuto󰀨 Valve.
4
10
7
1
8
2
3
5
12
9
6
11

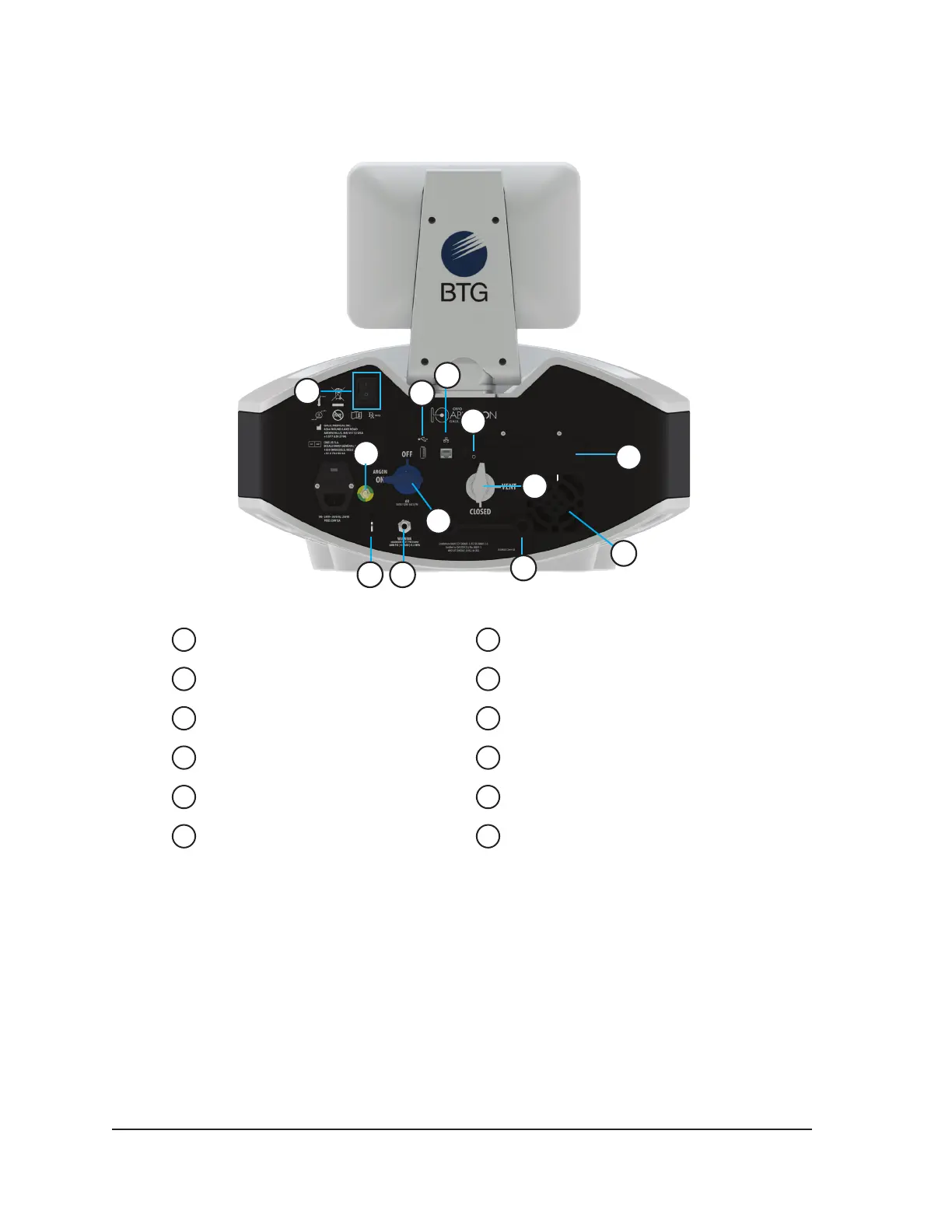

Figure 2-2. Console Rear View
1
Power Switch
7
Vent Valve
2
USB Port
8
Argon Shuto󰀨 Valve
3
Ethernet Port
9
Argon Inlet (quick-connect)
4
Software Reset Button
10
Humidity Cover
5
Service Door
11
Gas Safety Clip
6
Cooling Fan
12
Grounding Post (select countries)
2.1.1 Touch Screen Monitor
The cryoablation procedure is controlled by using the touch screen monitor. The monitor can be
tilted and rotated to provide the optimal viewing and operating angle for the user. The touch screen
monitor includes a virtual on-screen English QWERTY keyboard for entering procedure related data.
The monitor folds at into the top of the unit for storage.
2.1.2 Needle Connection Panel
The Needle Connection Panel contains two MTS Connection Ports and four numbered needle
channels; each channel contains two ports to support connection of up to two cryoablation needles.
