3.2 Attaching the Console to the ICEfx Cart
NOTE: If the cart is ordered with the Console, the Console is attached to the ICEfx Cart prior to
shipment.
1. Position the Console on the ICEfx Cart. The depression on the bottom of the Console rests on the
dome on top of the ICEfx Cart.

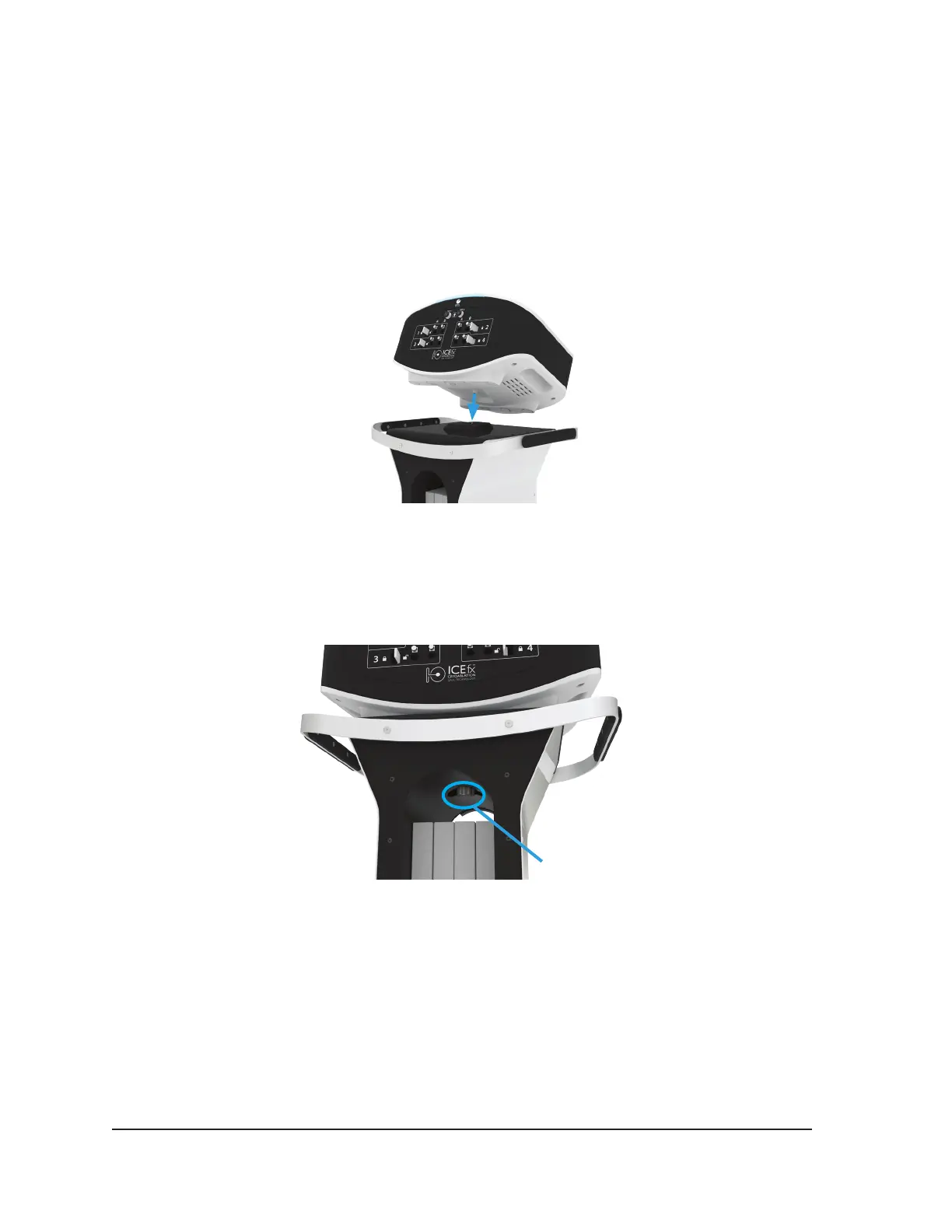

Figure 3-1. Position ICEfx Console on Cart
NOTE: Orientate the front of the Console with the logo on the ICEfx Cart.
2. Tighten the retaining screw on the cart.
Figure 3-2. Tighten Retaining Screw on Cart
