ICEfx™ Cryoablation System
3-7
4. Connect the argon high‑pressure gas supply line to the argon inlet of the Console using the
quick‑connect connector located at the rear of the Console.

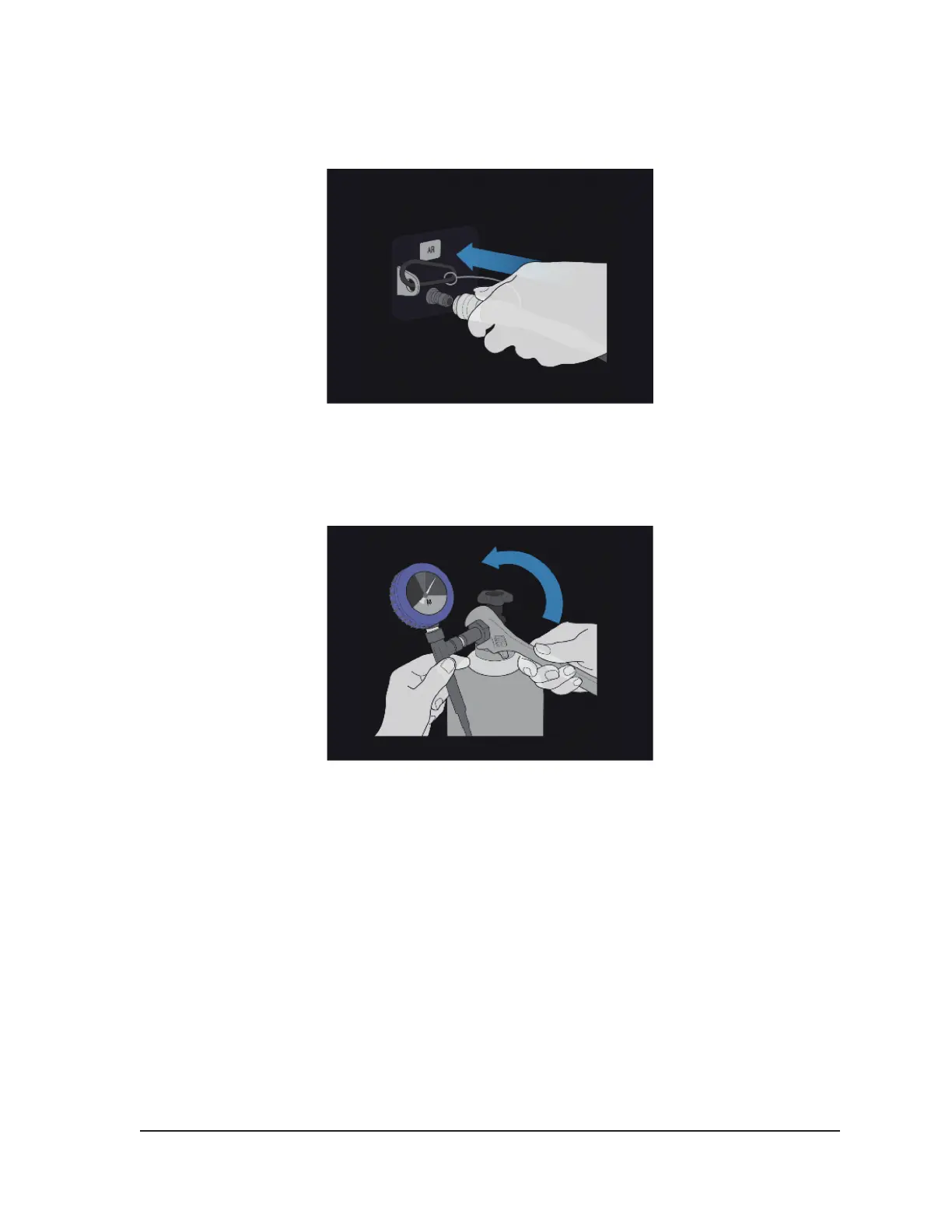

Figure 3-6. Connect Argon Gas Supply Line
5. Connect the argon high‑pressure gas supply line to the argon cylinder by securing the gauge
assembly adapter onto the cylinder connection (Figure 3‑7).
NOTE: The gas cylinder connection has left‑handed threads.
Figure 3-7. Gas Cylinder Set-up
