Printer parts
Printer parts
Front ........................................................................................................................................................................................... 652
Back ............................................................................................................................................................................................ 653
Top Cover (Inside) ................................................................................................................................................................. 654
Paper Feed Slots ................................................................................................................................................................... 655
Inside the Roll Feed Unit Cover ....................................................................................................................................... 656
Carriage ..................................................................................................................................................................................... 656
Ink Tank Cover (Inside) ....................................................................................................................................................... 657
Vents ........................................................................................................................................................................................... 658
Control Panel ........................................................................................................................................................................... 614

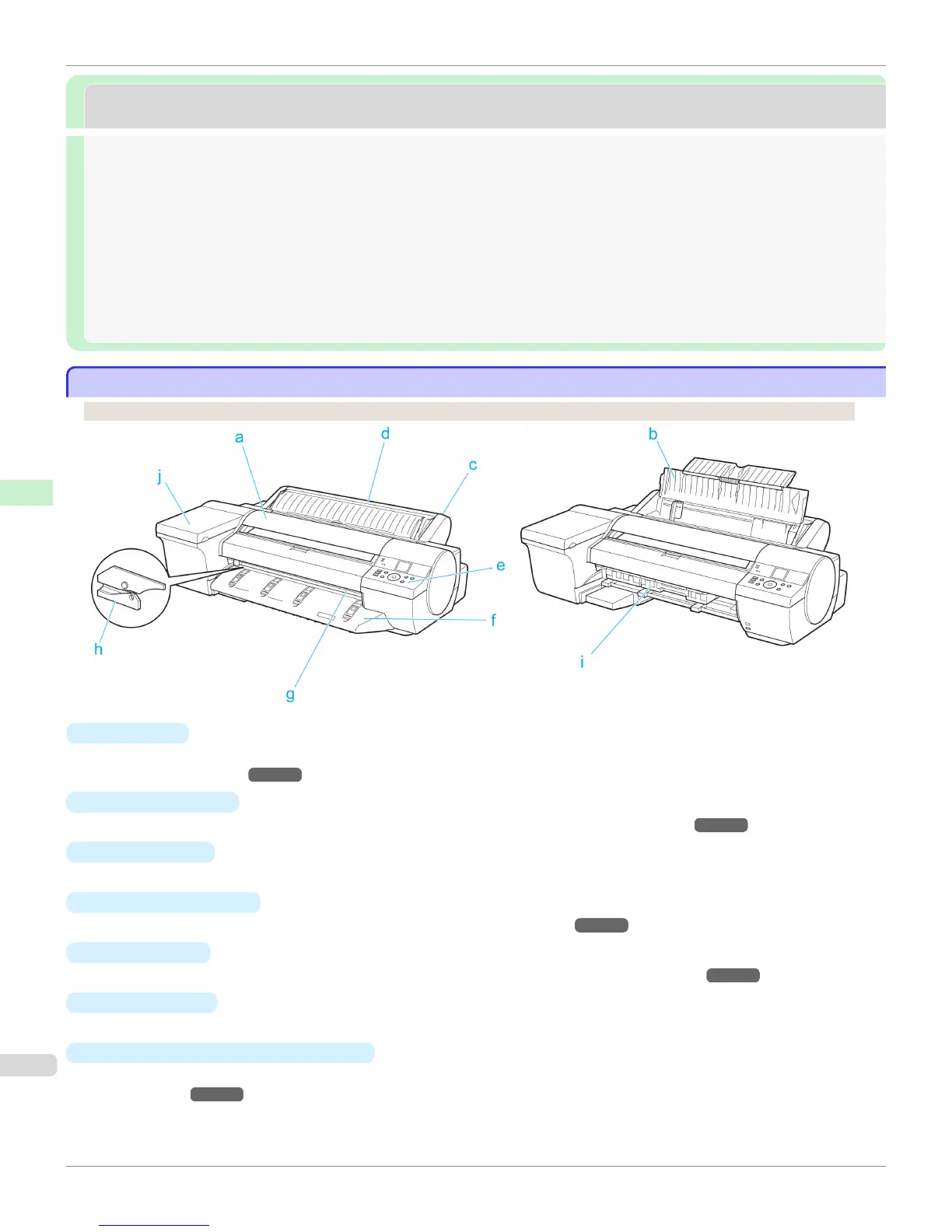

Front
Front
Standard With the Ejection Guide removed
a
Top Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed. (See
"Top Cover (Inside).") âž” P.654
b
Paper Tray Cover
Open this cover to load a sheet in the Top Paper Feed Slot. (See "Paper Feed Slots.") âž” P.655
c
Roll Feed Unit
Load rolls in this unit. You can also load sheets manually.
d
Roll Feed Unit Cover
Open this cover to load rolls.
(See "Inside the Roll Feed Unit Cover.") âž” P.656
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") âž” P.614
f
Ejection Guide
Supports output paper.
g
Output Tray ( Front Paper Feed Slot )
All printed documents are ejected from this slot. When loading heavyweight paper, insert it here. (See "Paper
Feed Slots.") âž” P.655
Front
iPF6400S
User's Guide
Printer Parts Printer parts
652
