Paper Feed Slots
Paper Feed Slots

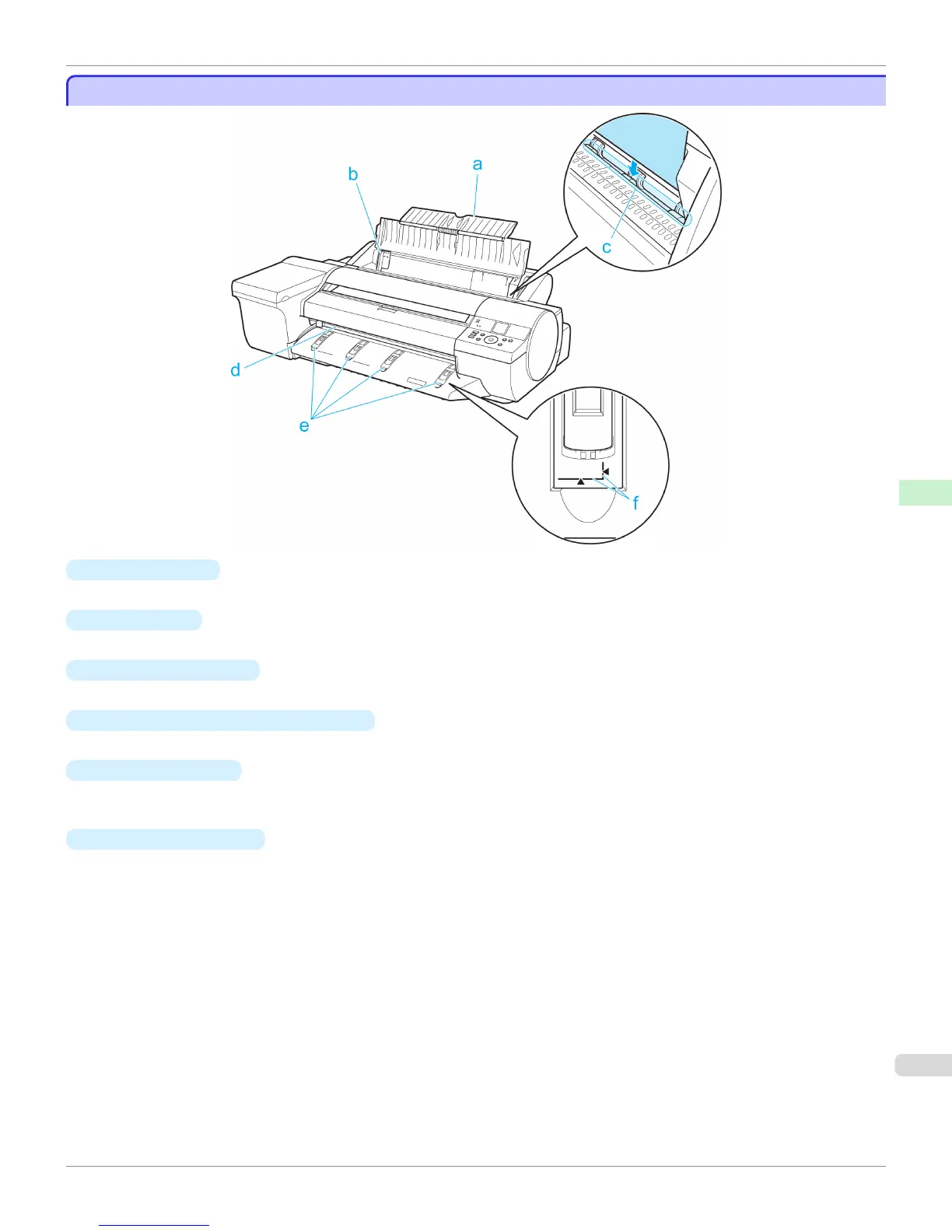

a
Tray Extension
When loading a sheet manually, open this tray after opening the Paper Tray Cover.
b
Width Guide
When loading a sheet, move the guide to match the paper size.
c
Top Paper Feed Slot
When loading a sheet, insert it here.
d
Front Paper Feed Slot ( Output Tray )
When loading a heavyweight sheet, insert it here. All printed documents are ejected from this slot.
e
Front Tray Guides
Lift all of the guides before printing on heavyweight paper. When feeding heavyweight paper, rest the sheet on
these guides, align it to the right, and insert the leading edge up to the Paper Alignment Line.
f
Paper Alignment Line
Load heavyweight sheets parallel to this line.
