Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink Tank.
c
Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On
The Ink Tank is installed correctly.
•
Off
No Ink Tank is installed, or the ink level detection function is off.
•
Flashing Slowly
Not much ink is left.
•
Flashing Rapidly
Ink tank is empty.
d
Ink Color Label
Load an Ink Tank that matches the color and name on this label.
Vents
Vents

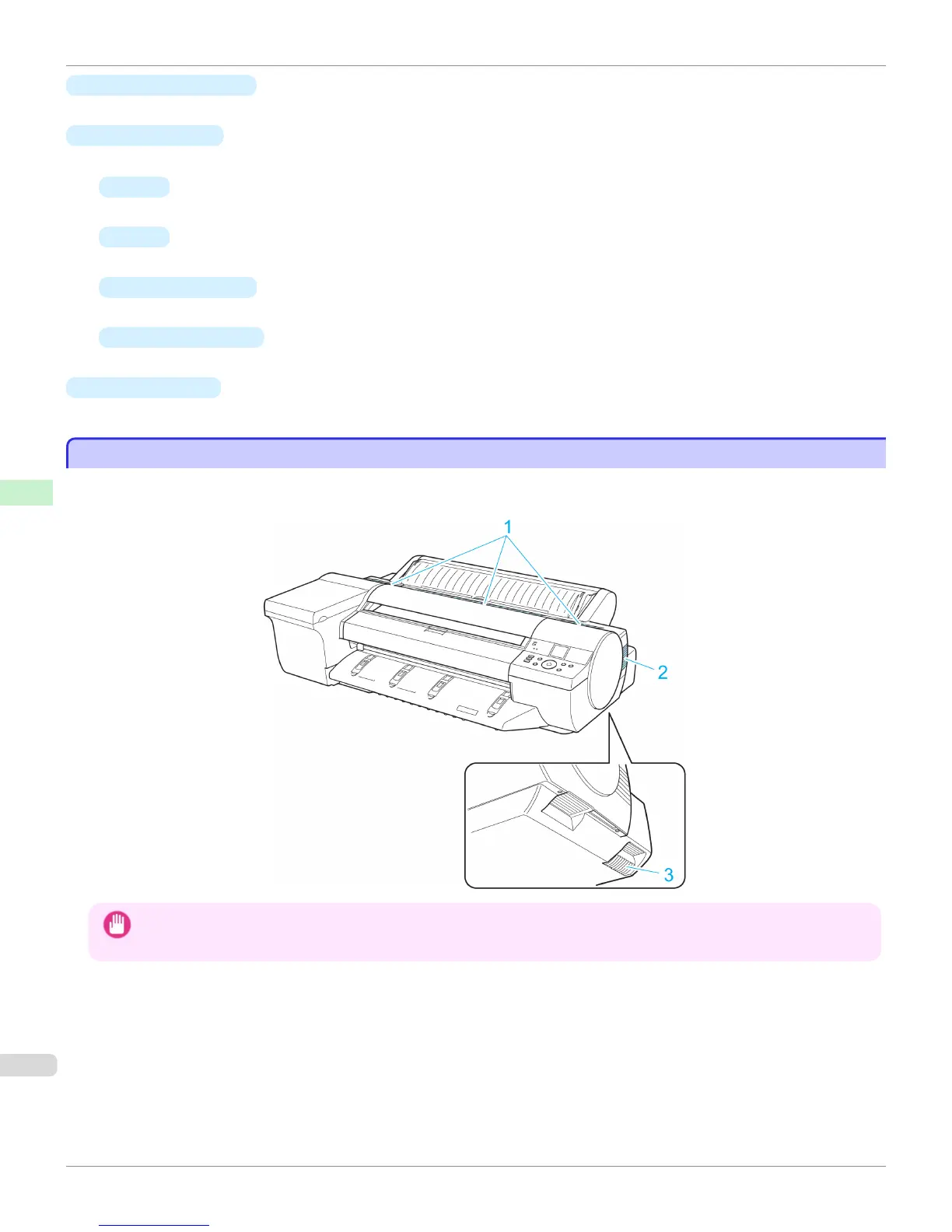

There are vents at three positions of the printer as shown: on top (1), on the right (2), and on the bottom on the right
(3).
Important
• Do not block these vents.
• Also, avoid setting paper or other light objects near the vents.
Vents
