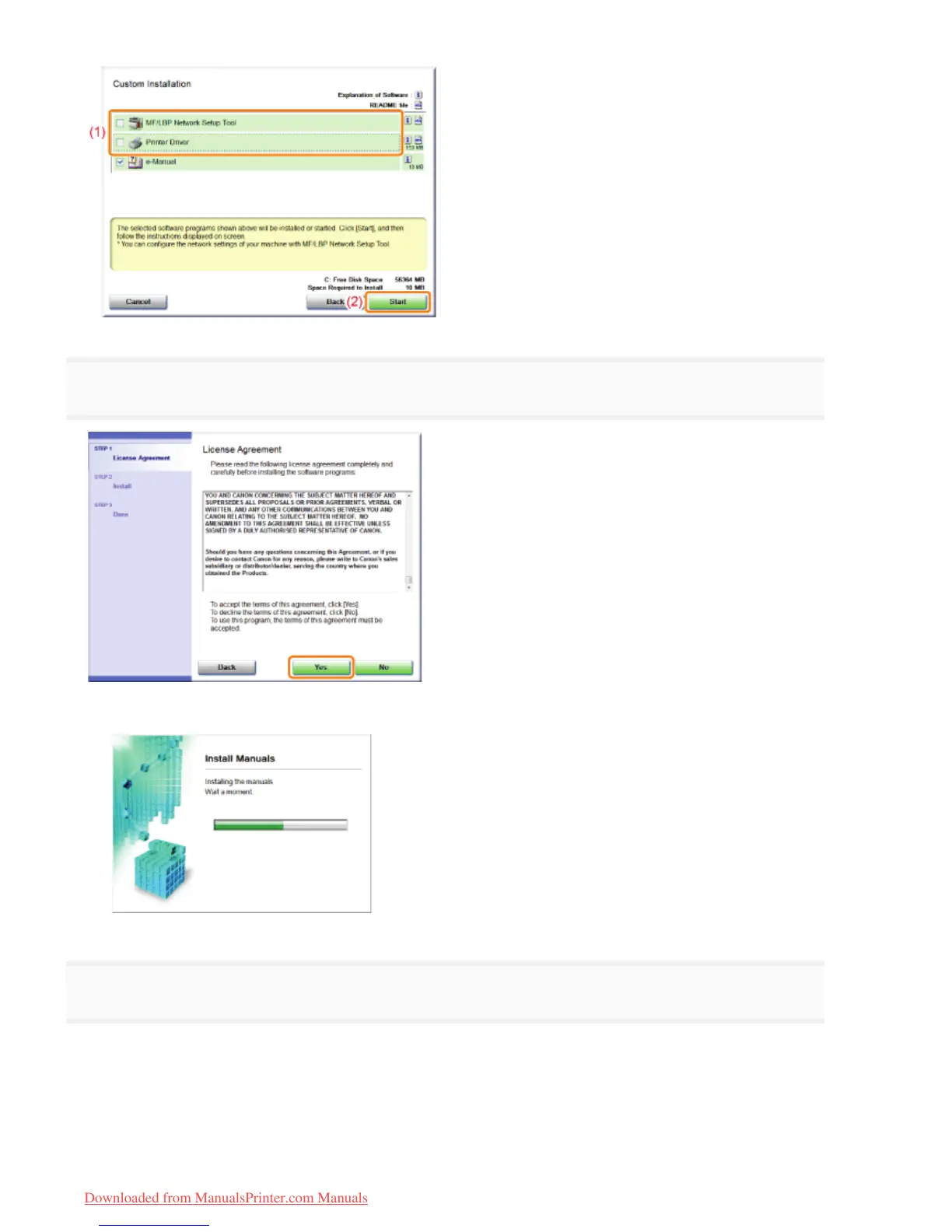

(2) Click [Start].

Read the contents of License Agreement, and then click [Yes].

ĺ The installation starts.

Wait a moment until the installation is complete. (It may take a long time to install the e-Manual.)

Click [Exit].

㻝㻢㻌㻛㻌㻡㻝㻠
